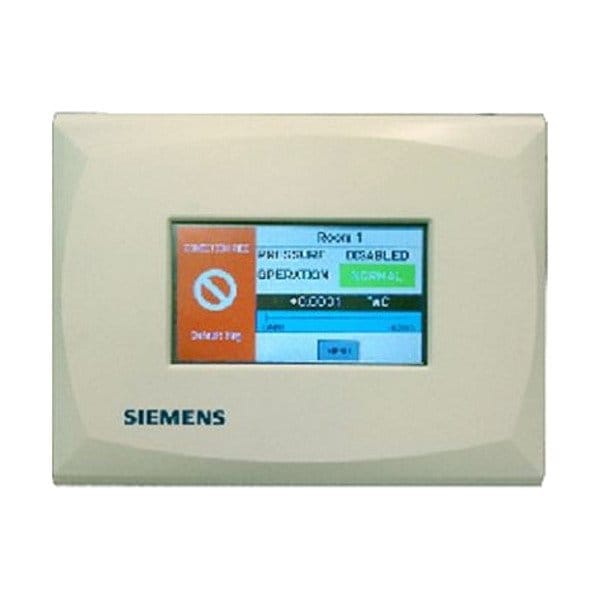

Room Condition Monitor, LCD Display 4.3
Mfr # 547-323A
Zoro # G310905153
product price:Â $3,077.99
/ea
Free Shipping & Returns
Key Features
Display Type
LCD
Features
Alarm Capabilities, Clone Configuration, Ease of Installation, Flush-Mount Design, High Resolution Color Touch-Screen Display, Multiple Communications Options, Multiple Room Support, True Pressure Measurement
Includes
(2) Silicone, 1/4-inch Tubes with Springs and Barbed Couplings, (5) 6-32 × 1/2 Phillips Head Mounting Screws, Mating Electrical Connectors, Phoenix Contact MC Plug Kit with (3) Green and (2) Black Connectors, SRCM Assembly, Including Factory-Calibrated Differential Pressure Sensor, SRCM Faceplate
Standards
CE
Application
Animal Research Facilities, Intensive Care Isolation Rooms, Organic Laboratories, Pharmaceutical Facilities, Research Laboratories, Surgical Suites
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 547-323A
- Zoro #
- G310905153
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Display Size
- 4.3 in
- Overall Length
- 0.38 in
- Overall Width
- 7.45 in
- Overall Height
- 5.84 in
- Wire Rope Length
- 0.38 in
Details
- Item
- Room Condition Monitor
- Display Type
- LCD
- Features
- Alarm Capabilities, Clone Configuration, Ease of Installation, Flush-Mount Design, High Resolution Color Touch-Screen Display, Multiple Communications Options, Multiple Room Support, True Pressure Measurement
- Includes
- (2) Silicone, 1/4-inch Tubes with Springs and Barbed Couplings, (5) 6-32 × 1/2 Phillips Head Mounting Screws, Mating Electrical Connectors, Phoenix Contact MC Plug Kit with (3) Green and (2) Black Connectors, SRCM Assembly, Including Factory-Calibrated Differential Pressure Sensor, SRCM Faceplate
- Standards
- CE
- Application
- Animal Research Facilities, Intensive Care Isolation Rooms, Organic Laboratories, Pharmaceutical Facilities, Research Laboratories, Surgical Suites
- Measurement Range
- +/- 0.25" WC (62.5 Pa)
- Analog Outputs
- 0 to 10V DC (3- wire), 0 to 5V DC (3-wire), 4 to 20 mA (2-wire)
- Operating Humidity - Maximum
- 95%
- Mount Type
- Self-Leveling Screw
- Power Consumption
- 3 W, 10 W
- Operating Temperature Range
- 32 Degrees F to 120 Degrees F
- Analog Inputs
- 0 to 10 V DC, 0 to 5 V DC, 4 to 20 mA Loop
- Electrical Connection Type
- Terminal Block
- Operating Voltage
- 18 to 30V AC
- Measurement Functions
- Pressure
- Communication Protocol
- BACnet, P1
- Accuracy
- 0.5%
Description
Room Condition Monitor, Display Type LCD, Accuracy 0.5 Percent, Application Animal Research Facilities, Intensive Care Isolation Rooms, Organic Laboratories, Pharmaceutical Facilities, Research Laboratories, Surgical Suites, Communication Protocol BACnet, P1, Display Size 4.3 in, Electrical Connection Type Terminal Block
