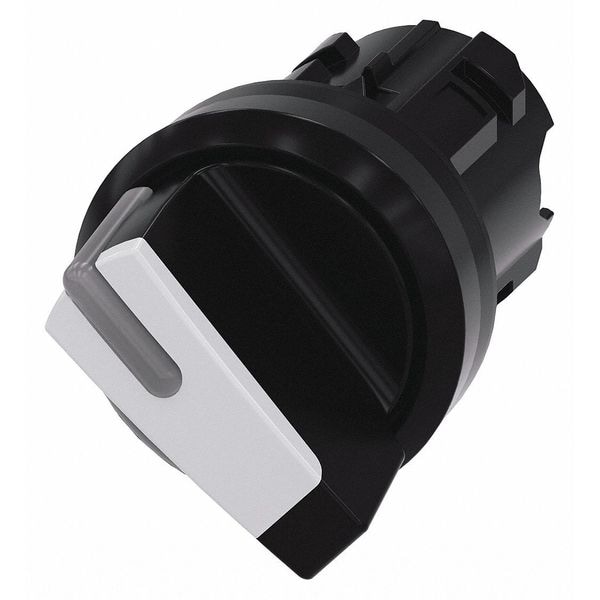

Siemens Selector Switch Operator, 22mm Sz, No Cam 3SU1002-2BC60-0AA0 - main

Selector Switch Operator, 22mm Sz, No Cam

  • Mfr # 3SU1002-2BC60-0AA0

  • Zoro # G3039622

product price: $20.59
/ea

Key Features

Action
Momentary/Momentary
Size
22 mm
Basic Material
Plastic
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Type of Operator
Lever
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1002-2BC60-0AA0
Zoro #
G3039622
UPC #
804766064302
Country of Origin
Czechia

Dimensions

Size
22 mm
Overall Height
0.5 in
Panel Cutout Diameter
22 mm
Overall Depth
5.5 in
Overall Width
4 in

Details

Action
Momentary/Momentary
Basic Material
Plastic
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Type of Operator
Lever
Cam
No Cam Included
Operator Head Material
Plastic
Operator Color
White
Position
2
Item
Short-Handled Selector Switch
Bezel Material
Plastic
Key Removal
No Key
Bezel Color
Black
Key Number
No Key
Switch Operation @ Position B
O
Switch Operation @ Position C
No Third Position
Switch Operation @ Position D
No Fourth Position
Standards
REACH Art. 33, RoHS, WEEE (2012/19/EU)
Switch Operation @ Position A
X
IP Rating
IP66, IP67, IP69, IP69K
Series
3SU
Number of switch positions
2
Colour indicator light cap
White
With front ring
Yes
Colour control element
White
Suitable for illumination
Yes
Type of control element
Toggle
Degree of protection (IP), front side
IP67/IP69K
Colour front ring
Black
Construction type lens
Rectangular
Material front ring
Plastic
Switch Function @ 4th Position
No Fourth Position
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Head Color
White
Hazardous Location Specification
Not Rated
Operator Illumination
Illuminated
Switch Function @ 2nd Position
On
Operator Head Type
Short-Handled Knob
Switch Function @ 3rd Position
No Third Position
Switch Function @ 1st Position
Off
Number of Positions
2

Description

Short-Handled Selector Switch, 22 mm, 2 Position, Momentary/Momentary Action, Lever Type of Operator, Operator Color White, Key Removal No Key, Operator Head Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards REACH Art. 33, RoHS, WEEE (2012/19/EU), Key Number No Key
