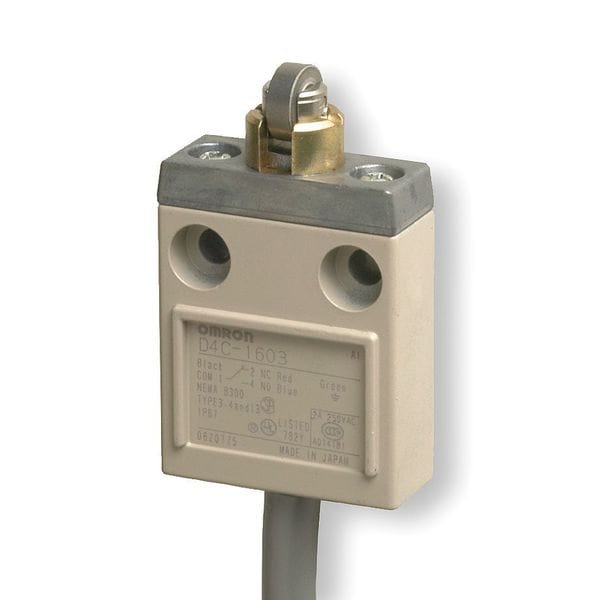

Limit Switch, Plunger, Roller, SPDT, 5A at 240V AC, Actuator Location: Top

  • Mfr # D4C1603

  • Zoro # G2807131

product price:
$
120.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D4C1603
Zoro #
G2807131
UPC #
-
Country of Origin
Japan

Dimensions

Width
1.57"
Body Height - Limit Switch
2.13 in
Depth
0.63"
Height
2.64"
Roller Dia.
0.47 in
Body Depth - Limit Switch
0.63 in
Body Width - Limit Switch
1.33 in
Roller Width
0.17 in
Body Height
2.13 in
Roller Diameter
0.47 in
Body Width
1.33 in
Body Depth
0.62 in
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Style
Cross Roller Plunger
Voltage Rating
240VAC
Boot Sealed Actuator - Limit Switch
No
AC Contact Rating
5 A @ 250 V
Movement
Top
Actuator Style (Limit Switch)
Plunger, Roller
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Body Material
Aluminum
Electrical Connection
Pre-Wired Cable
Wiring Entry
3m Cable
Mounting Hole Spacing - Limit Switch
0.98 in
Travel
Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm
Stem Thread - Limit Switch
No Stem
Basic Actuator Style (Limit Switch)
Plunger
Roller Material
Stainless Steel
Limit Switch Style
General Purpose Limit Switch
Amps
5
Operating Temp. Range
-14 Degrees to 158 Degrees F
Body Style (Limit Switch)
Miniature
Actuator Location (Limit Switch)
Top
Operating Force
6.9 N-m
Standards
CCC, CE, CSA, EN, UL Listed
Contact Form
SPDT
Number of Poles
1
Series
D4C
NEMA Rating
13, 3, 4
IP Rating
IP67
Boot Sealed Actuator (Limit Switch)
No
DC Contact Rating
4 A @ 30 V
Contact Form - Limit Switch
SPDT
Actuator Location
Top
Mounting Hole - Limit Switch
(2) 0.20 in dia
Differential Travel
0.01 in
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
158 Degrees F
Roller Adjustability
Fixed
Action
Momentary
Pretravel
0.07 in
Operating Torque - Minimum
2.92 in-lb
Roller Position
Top
Directional Movement
Linear
Mounting Style
Surface
Body Configuration
Plug-In
Operating Temperature - Minimum
14 Degrees F
Mounting Hole Vertical Center to Center Distance
25 mm
Plunger Adjustability
Fixed
Operating Torque - Maximum
61.07 in-lb
Mounting Hole Horizontal Center to Center Distance
25 mm
Number of Mounting Holes
2
Overtravel
0.12 in
Total Travel
0.19 in
Includes Actuator
Actuator Included
NEMA Enclosure Rating
13, 3, 4
Operating Force - Maximum
11.77 N
Lamp Type
LED

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 240V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 2.13 in, Body Width - Limit Switch 1.33 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface, Electrical Connection Pre-Wired Cable
