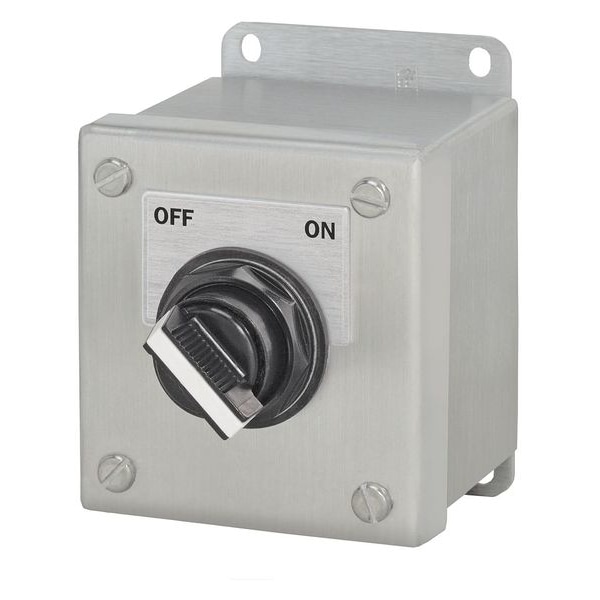

Siemens Selectr Swtch Cntrol Station, Off/On, 30mm 52C159S - main

Selectr Swtch Cntrol Station, Off/On, 30mm

  • Mfr # 52C159S

  • Zoro # G2382344

product price: $372.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Legend
Off/On
Type of Operator
2-Position Selector Switch
Number of Pilot Lights
0
Number of Operators
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52C159S
Zoro #
G2382344
UPC #
783087626669
Country of Origin
United States

Dimensions

Size
30 mm
Depth
4.5 in
Width
3.47 in
Overall Height
4.5 in
Hub Size - Maximum
1 3/16 in
Overall Width
3.47 in
Overall Depth
2.75 in
Panel Cutout Diameter
30 mm

Details

Item
Selector Switch Control Station
Contact Form
1NO/1NC
Legend
Off/On
Type of Operator
2-Position Selector Switch
Number of Pilot Lights
0
Number of Operators
1
NEMA Rating
4X
Series
Class 52
Standards
CSA LR6535, UL E22655
Contact Rating
5A @ 600V AC
Action
Maintained
Mechanical Interlock
No
IP Rating
IP66
Mounting
Wall
Enclosure Material
Stainless Steel
NEMA Contact Rating Designation
B600
Enclosure Color
Gray
Operator Color
Gray
Includes Mechanical Interlock
No Mechanical Interlock Included.
Operator Configuration
Selector Switch
Operating Temperature - Minimum
31 Degrees F
Selector Switch Number of Positions
2
DC Contact Rating
Not Rated
Operating Temperature - Maximum
158 Degrees F
AC Contact Rating
5 A @ 600 V
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
NEMA Enclosure Rating
4, 4X
Product Type
Control Station
Maintained Action Release
Twist
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant, Waterproof

Description

Selector Switch Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 30 mm, Legend Off/On, Type of Operator 2-Position Selector Switch, Action Maintained, Operator Color Gray, Contact Form 1NO/1NC, Mechanical Interlock No, NEMA Rating 4X, Contact Rating 5A @ 600V AC, NEMA Contact Rating Designation B600, IP Rating IP66, Mounting Wall, Width 3.47 in, Depth 4.5 in, Enclosure Material Stainless Steel, Enclosure Color Gray, Standards CSA LR6535, UL E22655
