This item is Discontinued.

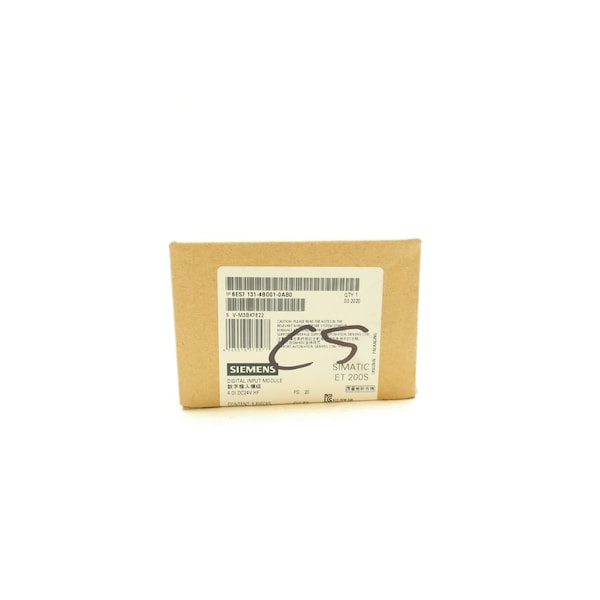

Siemens Simatic Box of 5 ET 200S Input Module 6ES7 131-4BD01-0AB0

Simatic Box of 5 ET 200S Input Module (Discontinued)

  • Mfr # 6ES7 131-4BD01-0AB0
  • Zoro # G704416432
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6ES7 131-4BD01-0AB0
Zoro #
G704416432
UPC #
662643217698
Country of Origin
Unknown

Dimensions

Width
15 millimetre
Height
81 millimetre
Depth
52 millimetre

Details

min. supply voltage with DC
20 volt
Power loss, static, current-independent [Pls]
1 watt
Input current for state 1
8 milliampere
Number of outputs
0
digital inputs, configurable
Yes
Number of inputs
4
max. supply voltage with DC
28.8 volt
Bearing track assembly possible
Yes
Number of HW interfaces serial RS422
0
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Number of HW interfaces serial RS485
0
Field bus connection possible via separate bus couplers
Yes
Design of electrical connection
Screw/spring connection
Number of HW interfaces Wireless
0
Rack-assembly possible
No
Protection type IP
IP20
description of product type
4DI 24 V DC HF
wall mounting/direct mounting possible
No
max. permissible voltage at input
30 volt
Front installation possible
No
Number of HW interfaces parallel
0
Number of HW interfaces, other
0
Number of outputs, digital
0
Input voltage, type
DC
Min. delay time with change of signal
0 millisecond
Number of HW interfaces PROFINET
0
System components present
Yes
Corresponding operating medium (Ex ia)
No
Max. delay time with change of signal
15 millisecond
Number of HW interfaces serial TTY
0
Optical interface present
No
Supply voltage type
DC
Number of inputs, digital
4
Number of HW interfaces Industrial Ethernet
0
Number of HW interfaces serial RS232
0
Corresponding operating medium (Ex ib)
No
Manufacturer product root
Digital module input
min. permissible voltage at input
-30 volt
Manufacturer product family
ET 200S
