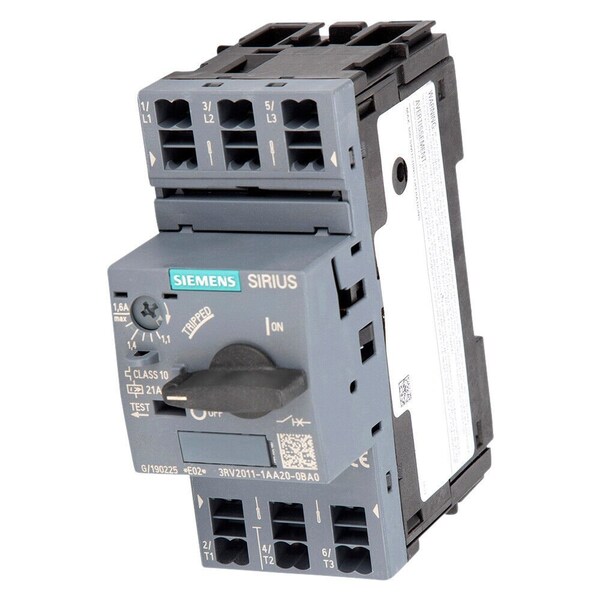

Special type Circuit breaker size S00 for motor protection CLASS 10
Mfr # 3RV2011-1AA20-0BA0
Zoro # G615867576
product price: $117.99
/eaSold in multiples of 4 for $471.96
Free Shipping & Returns
Key Features
Depth
97 mm
Amps
1.6A
Number of Poles
3
Max. AIR Rating
100kA at 400V AC
AC Voltage Rating
690V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
3RV2011-1AA20-0BA0
Zoro #
G615867576
UPC #
-
Country of Origin
Germany
Dimensions
Depth
97 mm
Frame Size
S00
Width
45 mm
Height
106 mm
Details
Item
Circuit Breaker
Amps
1.6A
Number of Poles
3
Max. AIR Rating
100kA at 400V AC
AC Voltage Rating
690V AC
Circuit Breaker Actuator
Turn Button
Terminal Connection
Spring Clamp Connection
Circuit Breaker Type
Motor Protection
Trip Type
Magnetic
Instantaneous Trip
Adjustable
Description
Special type Circuit breaker size S00 for motor protection, CLASS 10 A-release 1.1...1.6 A N-release 21 A Spring-type terminal Standard switching capacity Ambient temperature -50 °C 500 switching cycles
