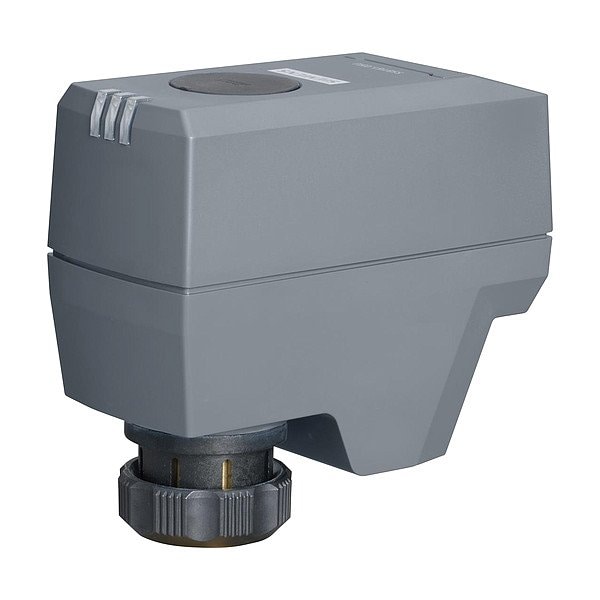

SSB131.09U 3P FIP POWERMITE MZ ACT

Mfr # SSB131.09U
Zoro # G616474957

87.78

Key Features

Voltage

24V AC

Overall Width

4 1/8 in

Compatible Valve Action

Normally Closed, Normally Open

Control Signal

Floating Point

Housing Material

ABS, Polycarbonate

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: SSB131.09U
Zoro #: G616474957
UPC #: -
Country of Origin: China

Dimensions

Overall Width: 4 1/8 in
Overall Height: 3 11/16 in
Overall Depth: 1 7/8 in
Stroke Length: 5.5 mm

Details

Item: Electric Valve Actuator
Voltage: 24V AC
Compatible Valve Action: Normally Closed, Normally Open
Control Signal: Floating Point
Housing Material: ABS, Polycarbonate
Operating Temperature - Maximum: 122 Degrees F
Power Consumption: 1 VA
Compatible Manufacturer Model Number: 599-01100, 599-01139
NEMA Rating: 2
Electrical Connection Type: Terminal Block
Compatible Brand: Siemens
Torque: 540 in-lb
Compatible Series: MZ
Mounting Style: Direct Mount
Product Type: Electric Valve Actuator
Application: Chilled Ceilings, Fan Coils, Unit Ventilators, VAV Systems
Cycle Time: 88 sec
Compatible Valve Body Pattern: Three-Way, Two-Way
Standards: C-tick, CE, cUL Listed, UL
Return Action: Non-Spring Return
Includes Electrical Leads: Electrical Leads Not Included
Frequency: 50/60 Hz
Operating Temperature - Minimum: 34 Degrees F

Description

Electric Valve Actuator, Application Chilled Ceilings, Fan Coils, Unit Ventilators, VAV Systems, Auxiliary Contact Form Not Applicable, Compatible Brand Siemens, Compatible Close-Off Pressure Not Applicable, Compatible Manufacturer Model Number 599-01100, 599-01139, Compatible Series MZ, Compatible Valve Action Normally Closed, Normally Open, Compatible Valve Body Pattern Three-Way, Two-Way, Control Signal Floating Point, Cycle Time 88 sec, Electrical Connection Type Terminal Block
