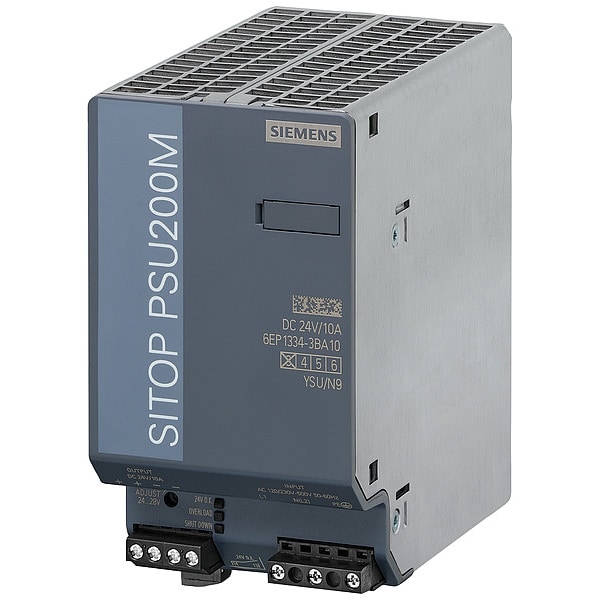

Siemens Stabilized Power Supply, 120/230V AC; 230/500V AC, 24V DC, 240 W, 10 A, DIN Rail 6EP13343BA108AB0 - main

Stabilized Power Supply, 120/230V AC; 230/500V AC, 24V DC, 240 W, 10 A, DIN Rail

  • Mfr # 6EP13343BA108AB0

  • Zoro # G8361517

product price:  $596.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
120/230V AC; 230/500V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
240 W
Current - Output
10 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP13343BA108AB0
Zoro #
G8361517
UPC #
887621837280
Country of Origin
Romania

Dimensions

Overall Height
70 mm
Overall Width
125 mm
Overall Depth
121 mm
Depth
121 mm
Width
70 mm
Height
125 mm

Details

Item
Stabilized Power Supply
Input Voltage
120/230V AC; 230/500V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
240 W
Current - Output
10 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Features
Wide-Range Input, Product Function Output Voltage Adjustable, Parallel Switching for Enhanced Performance, Property of the Output Short-Circuit Proof, Primary/Secondary Isolation, Screw-Type Terminals, LED Yellow for "Overload" , LED Red for "Latching Shutdown" , Product Feature of the Enclosure Housing for Side-by-Side Mounting
Regulated / Unregulated
Regulated
Power Rating
240W
Output Voltage
24V DC
Output Amps
10A
Hz
47 to 63 Hz
Status Indicator
LED
Standards
CB-Certificate Yes, CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Operating Temp. Range
-25 to 70°C
IP Rating
IP20
Connection
Screw
Phase - Electrical
Single
Protection
Short-Circuit Proof
Series
SITOP PSU200M Plus
Wire Connection Type
Screw Terminals
Special Features
Overvoltage Protection, Short Circuit Protection
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Current - Inrush
35 A

Description

Stabilized Power Supply, Input Voltage 120 to 500 V AC, Output Voltage 24V DC, Power Rating 240W, Output Amps 10, Mounting DIN Rail, Height 125 mm, Width 70 mm, Depth 121 mm, Series SITOP PSU200M Plus, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator LED
