  11. Stabilized Power Supply, 120/230V AC, 24V DC, 120 W, 5 A, DIN Rail

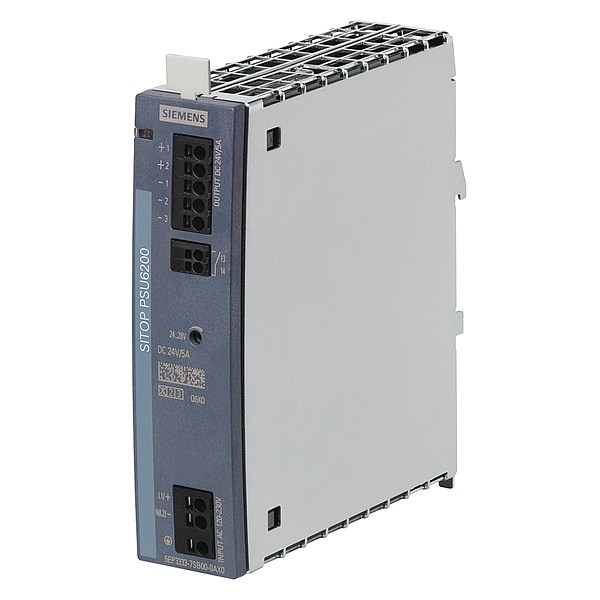

Siemens Stabilized Power Supply, 120/230V AC, 24V DC, 120 W, 5 A, DIN Rail 6EP33337SB000AX0 - main

Stabilized Power Supply, 120/230V AC, 24V DC, 120 W, 5 A, DIN Rail

  • Mfr # 6EP33337SB000AX0

  • Zoro # G8360013

product price: $271.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
120/230V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP33337SB000AX0
Zoro #
G8360013
UPC #
804766815690
Country of Origin
United States

Dimensions

Overall Height
35 mm
Overall Width
135 mm
Overall Depth
125 mm
Depth
125 mm
Width
35 mm
Height
135 mm

Details

Item
Stabilized Power Supply
Input Voltage
120/230V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Output Voltage
24V DC
Power Rating
120W
Features
Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Push-in Terminals, Wide-Range Input
Series
SITOP PSU6200
IP Rating
IP20
Operating Temp. Range
-25 to 70°C
Phase - Electrical
Single
Status Indicator
LED/DC OK Signal
Output Amps
5A
Hz
47 to 63 Hz
Regulated / Unregulated
Regulated
Protection
Short-Circuit Proof
Standards
BIS, CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, Regulatory Compliance Mark (RCM), RoHS, UL, WEEE (2012/19/EU)
Special Features
Short Circuit Protection
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-22 Degrees F
Wire Connection Type
Push In
Current - Inrush
29 A

Description

Stabilized Power Supply, Input Voltage 120 to 230V AC, 120 to 240V DC, Output Voltage 24V DC, Power Rating 120W, Output Amps 5, Mounting DIN Rail, Height 135 mm, Width 35 mm, Depth 125 mm, Series SITOP PSU6200, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator LED/DC OK Signal
