Shop SIEMENS

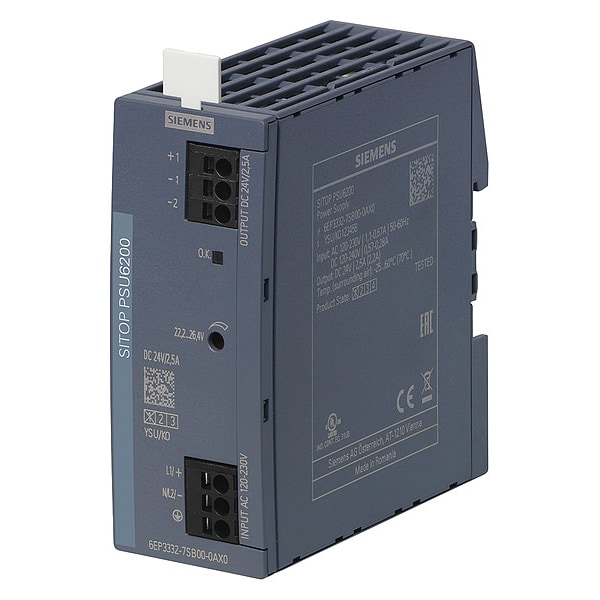

Stabilized Power Supply, 120/230V AC, 24V DC, 60 W, 2.5 A, DIN Rail

  • Mfr # 6EP33327SB000AX0

  • Zoro # G8363748

product price:  $149.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
120/230V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6EP33327SB000AX0
Zoro #
G8363748
UPC #
804766819018
Country of Origin
Romania

Dimensions

Overall Height
3.94 in
Overall Width
1.58 in
Overall Depth
3.47 in
Width
40 mm
Height
100 mm
Depth
88 mm

Details

Item
Stabilized Power Supply
Input Voltage
120/230V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Features
Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Push-in Terminals, Wide-Range Input
Output Voltage
24V DC
Series
SITOP PSU6200
Operating Temp. Range
-25 to 70°C
Standards
BIS, CB-Certificate Yes, CE, CSA, EAC, NEC Class 2, REACH Art. 33, Regulatory Compliance Mark (RCM), RoHS, UL, WEEE (2012/19/EU)
Regulated / Unregulated
Regulated
Power Rating
60W
Output Amps
2.5A
Status Indicator
LED/DC OK Signal
Phase - Electrical
Single
Hz
47 to 63 Hz
IP Rating
IP20
Protection
Short-Circuit Proof
Current - Inrush
32 A
Special Features
Short Circuit Protection
Operating Temperature - Minimum
-13 Degrees F
Wire Connection Type
Push In
Operating Temperature - Maximum
158 Degrees F
Input Frequency - Maximuim
63 Hz
Output Voltage - Maximum
26.4 V DC
Power Supply Style
Switching
Output Voltage - Minimum
22.2 V DC
Input Frequency - Minimum
47 Hz

Description

Stabilized Power Supply, Input Voltage 120 to 230V AC, 120 to 240V DC, Output Voltage 24V DC, Power Rating 60W, Output Amps 2.5, Mounting DIN Rail, Height 100 mm, Width 40 mm, Depth 88 mm, Series SITOP PSU6200, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator LED/DC OK Signal
