Shop SIEMENS

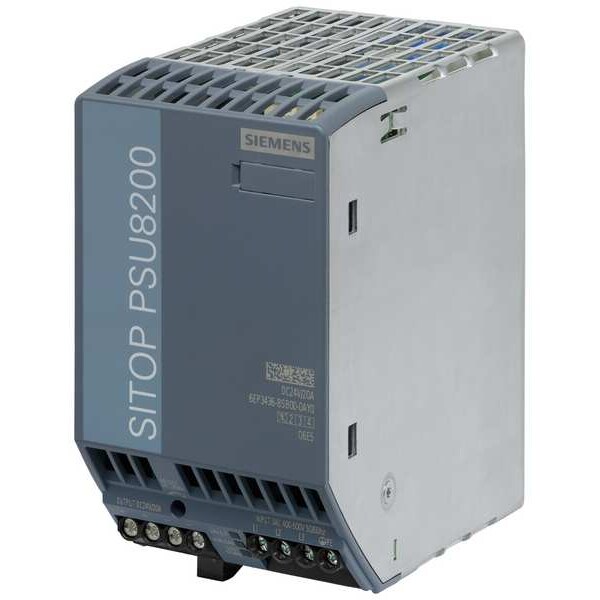

Stabilized Power Supply, 400/500V AC, 24V DC, 480 W, 20 A, DIN Rail

  • Mfr # 6EP34368SB000AY0

  • Zoro # G8360004

product price:
$
639.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
400/500V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6EP34368SB000AY0
Zoro #
G8360004
UPC #
887621882709
Country of Origin
Romania

Dimensions

Overall Height
4.92 in
Overall Width
2.76 in
Overall Depth
4.92 in
Depth
125 mm
Height
125 mm
Width
70 mm

Details

Item
Stabilized Power Supply
Input Voltage
400/500V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Three
Status Indicator
LED
Phase - Electrical
Three
Features
Parallel Switching for Enhanced Performance, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product Function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Screw-Type Terminals, Wide-Range Input
Output Voltage
24V DC
IP Rating
IP20
Operating Temp. Range
-25 to 70°C
Hz
47 to 63 Hz
Series
SITOP PSU8200
Protection
Short-Circuit Proof
Standards
BIS, CB-Certificate Yes, CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Regulated / Unregulated
Regulated
Power Rating
480W
Connection
Screw
Output Amps
20A
Current - Inrush
16 A
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Special Features
Short Circuit Protection
Wire Connection Type
Screw Terminals
Power Supply Style
Switching
Output Voltage - Maximum
28.8 V DC
Input Frequency - Maximuim
63 Hz
Input Frequency - Minimum
47 Hz
Output Voltage - Minimum
24 V DC

Description

Stabilized Power Supply, Input Voltage 400 to 500V AC, Output Voltage 24V DC, Power Rating 480W, Output Amps 20, Mounting DIN Rail, Height 125 mm, Width 70 mm, Depth 125 mm, Series SITOP PSU8200, Hz 47 to 63 Hz, Phase - Electrical Three, IP Rating IP20, Status Indicator LED
