  11. Surge Protection Device, 3 Phase, 480V, 3 Poles, 3 Wires

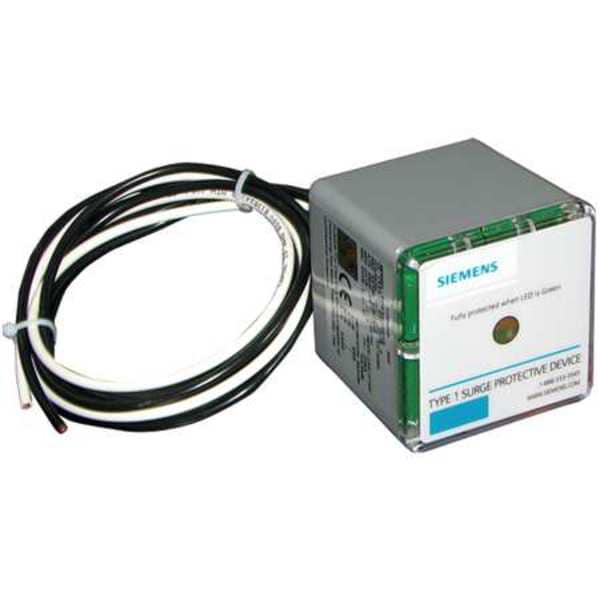

Siemens Surge Protection Device, 3 Phase, 480V, 3 Poles, 3 Wires TPS3F1115D2 - main

Surge Protection Device, 3 Phase, 480V, 3 Poles, 3 Wires

  • Mfr # TPS3F1115D2

  • Zoro # G3618325

product price: $1,488.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Surface
Phase
3
Voltage
480V
Number of Poles
3
Number of Wires
3 Wires
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPS3F1115D2
Zoro #
G3618325
UPC #
040892250862
Country of Origin
United States

Dimensions

Length
6 in
Depth
4 in
Width
6 in

Details

Item
Surge Protection Device
Mounting Style
Surface
Phase
3
Voltage
480V
Number of Poles
3
Voltage Protection Rating
1800V (L-G), 2000V (L-L)
Number of Wires
3 Wires
Modes of Protection
L-G, L-L
Max. Surge Current per Mode
150 kA
Max. Surge Current per Phase
150 kA
Nominal Discharge Current
10 kA
Short Circuit Current Rating
200kA
Modular
No
Filtering
Yes
Max. Continuing Operating Voltage
552V AC
Enclosure NEMA Rating
NEMA 4X
IP Rating
IP56
Enclosure Material
Polycarbonate
Wire Gauge
10 to 8 AWG
Includes
Dry Contacts, EMI/RFI Filters
Standards
ANSI/IEEE , UL/cUL 1449 Listed, Type 2
Modular / Nonmodular
Nonmodular
Lightning Impulse Current
20 kA
Noise Attenuation
-50db @ 10kHz to 100MHz
System Connection
Parallel
Min. Operating Temp.
-15 Degrees F
Color
Gray
UL SPD Type
Type 2
Max. Operating Temp.
140 Degrees F
Basic Material
Nonmetallic
Includes Surge Counter
No
Status Indicator
LED Light

Description

Surge Protection Device, Nonmetallic, Gray, Depth 4 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 4X
