  6. Control Transformer, 1.5 kVA, Not Rated, 120V AC, 208/240/480V AC

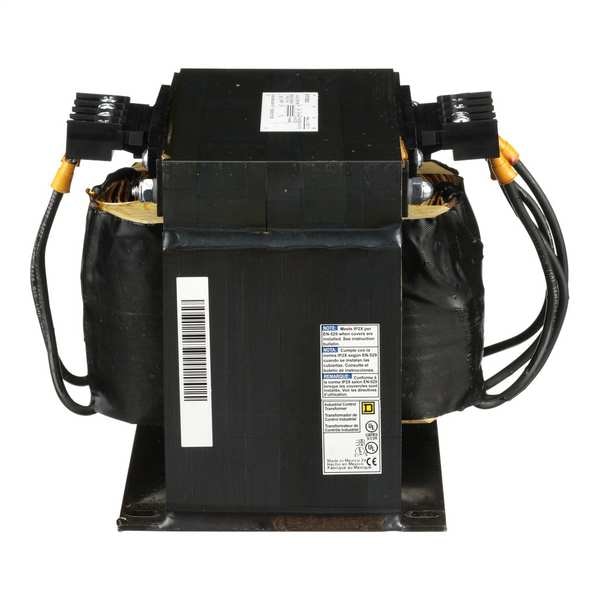

Square D Control Transformer, 1.5 kVA, Not Rated, 120V AC, 208/240/480V AC 9070T1500D20 - main

Control Transformer, 1.5 kVA, Not Rated, 120V AC, 208/240/480V AC

  • Mfr # 9070T1500D20

  • Zoro # G1698024

product price:  $967.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
208/240/480V AC
Output Voltage
120V AC
Power Rating
1.5 kVA
Phase
1
Mounting - Transformer
Foot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070T1500D20
Zoro #
G1698024
UPC #
785901322290
Country of Origin
United States

Dimensions

Overall Height
6.16 in
Overall Width
7.04 in
Overall Depth
7.06 in
Manufacturers Warranty Length
18 mo

Details

Item
Control Transformer
Input Voltage - Transformer
208/240/480V AC
Output Voltage
120V AC
Power Rating
1.5 kVA
Phase
1
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
115°C
Enclosure Finish
Epoxy Resin Varnish
Enclosure Style - Transformer
Open
Standards
CSA, REACH, RoHS, UL Listed
Fused
No
Protective Device
None
Green Environmental Attribute
Mercury Free; Pvc Free
Insulation Max. Temp.
180 °C
Primary Connection
Screw clamp terminals
Enclosure Type
Open
Secondary Connection
Screw clamp terminals
Fingersafe Cover Compatibility
FSC2
Insulation Temperature
356°F (180°C)
Primary To Secondary Voltage
208/230/460 V 115 V
Certifications
UL Listed; CSA

Description

Control Transformer, Input Voltage - Transformer 208V AC, 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 1.5 kVA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish
