This item is Discontinued.

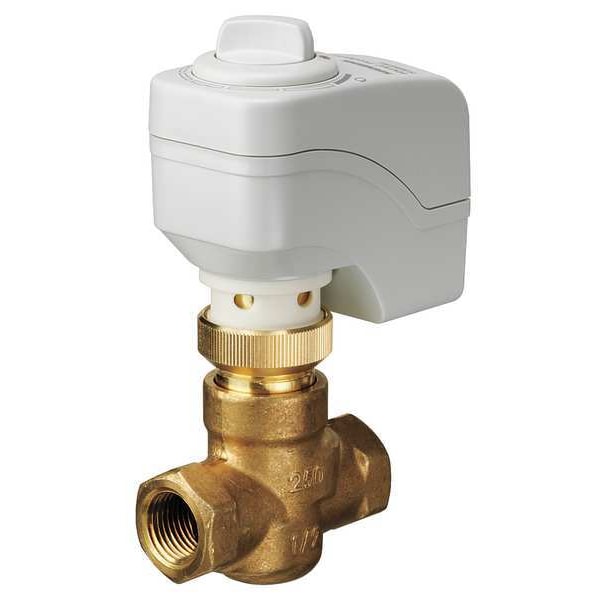

Siemens Zone Valve, Globe, 1/2 in. NPT 254-01119

Zone Valve, Globe, 1/2 in. NPT (Discontinued)

  • Mfr # 254-01119
  • Zoro # G7929257
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
254-01119
Zoro #
G7929257
UPC #
094726780223
Country of Origin
United States

Dimensions

Width (In.)
3 1/4 in
Depth (In.)
1 1/2 in
Connection Type/Size (In.)
(F)NPT 1/2
Height (In.)
13 1/8 in
Port Connection Size
1/2 in
Overall Width
3 1/4 in
Overall Depth
1 1/2 in
Overall Length
13 1/8 in

Details

Item
Zone Valve
Type
Globe
For Use With
Water
Standard Pressure Closeoff
60
Includes
Control Valve, Electronic Actuator, Terminal Connector., Terminal Plug
Voltage
24
Motor Type
Non-Spring Return
Safe Working Water PSI
60 psi
Max. Water Temp. (Deg. F)
250 Degrees F
Specifications
Electrical, Globe Valve, MZ Series
Electrical Connections
Terminal Block
Agency Compliance
CSA C22.2 No. 24-93, UL/cUL, UL873
Coefficient of Volume
1
Valve Action
Normally Open
Application
Convectors, Fan Coils, Reheat Coils
Fluid Temperature - Minimum
35 Degrees F
Actuator Return Action
Non-Spring Return
Port Connection Type
NPT
Frequency
50/60 Hz
Distance Between Inlet and Outlet Port
2 3/4 in
Standards
C-UL, CSA C22.2 No. 24-93, UL 873, UL Listed
Body Pattern
Two-Way
Actuator Control Signal
Floating
Valve Type
Globe
Actuator Voltage
24V AC
Includes Actuator
Actuator Included
Coefficient of Volume (Cv)
1
Stem Material
Stainless Steel
Operating Temperature - Minimum
41 Degrees F
Installation Orientation
Vertical Preferred
Body Material
Brass
Actuator Type
Electric
For Media
Water
Port Connection Gender
Female
Operating Temperature - Maximum
122 Degrees F
Allowable Pressure - Maximum
60 psi
Fluid Temperature - Maximum
250 Degrees F
Close-Off Pressure
60 psi
Spring Action
Non-Spring Return
Includes Electrical Leads
Electrical Leads Included

Description

Zone Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal Floating, Actuator Return Action Non-Spring Return, Actuator Type Electric, Actuator Voltage 24V AC, Allowable Pressure - Maximum 60 psi, Application Convectors, Fan Coils, Reheat Coils, Body Material Brass, Body Pattern Two-Way, Bypass Port Coefficient of Volume (Cv) Not Applicable, Close-Off Pressure 60 psi, Coefficient of Volume (Cv) 1
