This item is Discontinued.

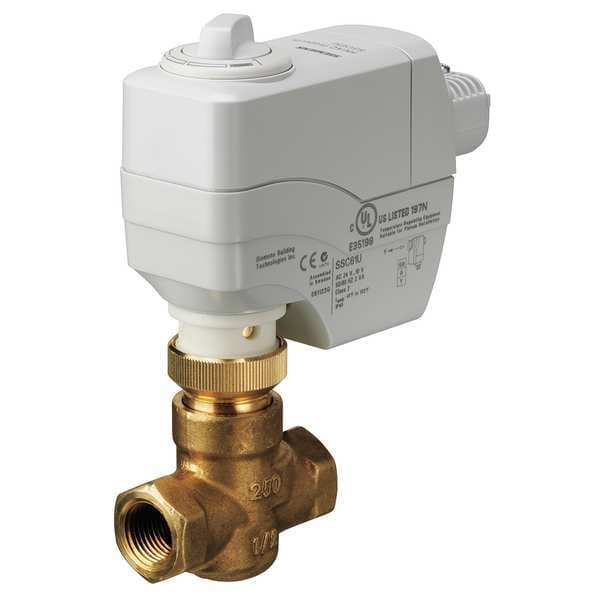

Siemens Zone Valve, Globe, 1/2 in. NPT 259-02000

Zone Valve, Globe, 1/2 in. NPT (Discontinued)

  • Mfr # 259-02000
  • Zoro # G8227651
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
259-02000
Zoro #
G8227651
UPC #
094726780278
Country of Origin
United States

Dimensions

Depth (In.)
1 3/4 in
Connection Type/Size (In.)
(F)NPT 1/2
Width (In.)
4 3/4 in
Height (In.)
5 3/4 in
Port Connection Size
1/2 in
Overall Width
4 3/4 in
Overall Depth
1 3/4 in
Overall Length
5 3/4 in

Details

Item
Zone Valve
Type
Globe
For Use With
Water
Voltage
24
Safe Working Water PSI
95 psi
Standard Pressure Closeoff
95
Max. Water Temp. (Deg. F)
250 Degrees F
Steam Capacity (Lb./Hr.)
15 lb/hr
Coefficient of Volume
0.4
Specifications
Floating, Globe Valve, MT Series
Includes
Control Valve, Electronic Actuator, Terminal Connector., Terminal Plug
Motor Type
Non-Spring Return
Agency Compliance
UL
Safe Working Steam PSI
25 psi
Electrical Connections
Terminal Block
Includes Actuator
Actuator Included
Gasket/Plug Material
Ethylene Propylene
Frequency
50/60 Hz
Operating Temperature - Maximum
122 Degrees F
Installation Orientation
Vertical Preferred
Valve Action
Normally Closed
For Media
Water
Allowable Pressure - Maximum
95 psi
Actuator Voltage
24V AC
Distance Between Inlet and Outlet Port
2 3/4 in
Spring Action
Non-Spring Return
Includes Electrical Leads
Electrical Leads Included
Fluid Temperature - Maximum
250 Degrees F
Body Material
Brass
Close-Off Pressure
95 psi
Body Pattern
Two-Way
Port Connection Gender
Female
Standards
C-UL, CSA C22.2 No. 24-93, UL 873, UL Listed
Actuator Type
Electric
Coefficient of Volume (Cv)
0.4
Port Connection Type
NPT
Actuator Control Signal
Floating
Operating Temperature - Minimum
41 Degrees F
Fluid Temperature - Minimum
35 Degrees F
Application
Convectors, Fan Coils, Radiators, Reheat Coils, Unit Conditioners
Valve Type
Globe
Stem Material
Stainless Steel
Actuator Return Action
Non-Spring Return

Description

Zone Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal Floating, Actuator Return Action Non-Spring Return, Actuator Type Electric, Actuator Voltage 24V AC, Allowable Pressure - Maximum 95 psi, Application Convectors, Fan Coils, Radiators, Reheat Coils, Unit Conditioners, Body Material Brass, Body Pattern Two-Way, Bypass Port Coefficient of Volume (Cv) Not Applicable, Close-Off Pressure 95 psi
