  9. SilverStone Technologies RM21-304 3.5 x 2.5 in. Hot Swap Bays Micro-ATx 2U Rackmount Server Case
This item is Discontinued.
Silverstone SilverStone Technologies RM21-304 3.5 x 2.5 in. Hot Swap Bays Micro-ATx 2U Rackmount Server Case RM21-304

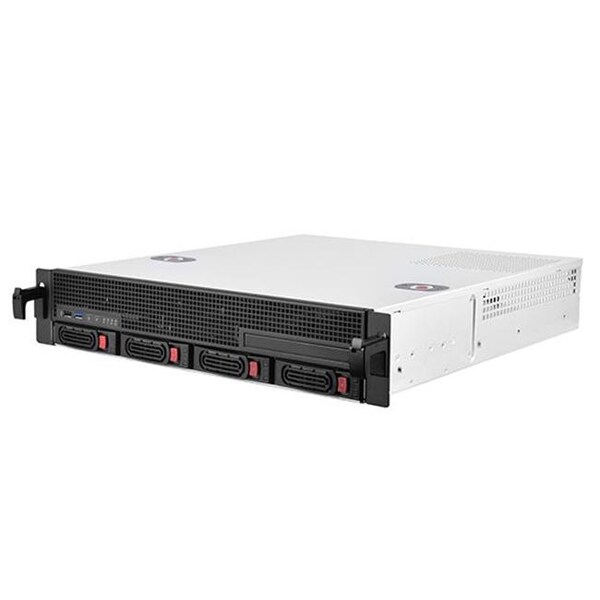

SilverStone Technologies RM21-304 3.5 x 2.5 in. Hot Swap Bays Micro-ATx 2U Rackmount Server Case (Discontinued)

  • Mfr # RM21-304
  • Zoro # G704159575
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RM21-304
Zoro #
G704159575
UPC #
844761014537
Country of Origin
China

Description

Features
  • Backplane Support for 4 port SAS / SATA drives and 6 Gb/s Mini-SAS SFF-8087
  • Supports four 2.5" / 3.5" SAS/SATA HDD / SSD
  • Includes three 80 x 15mm PWM fans
  • Independent drive status LED
  • Supports Micro ATx motherboards
  • Supports four low profile PCI / PCIe slots
  • Auto lock handle design easily secures to rackmount cabinet without screws
Indicators
  • Chassis Power LED x 1- Blue
  • Chassis HDD Access x 1- Green
  • Chassis LAN LED x 2- Green
  • HDD Tray
  • HDD Tray HDD Power LED x 8- Yellow
  • HDD Tray HDD Access x 8- Blinking green
HDD Interface
  • SAS-1 / SAS-2 / SAS-3
  • SATA-1 / SATA-2 / SATA-3
Specifications
  • Chassis Form Factor: 2U
  • Mother Board: Micro ATx (9.6" x 9.6"), Mini-ITx (6.7" x 6.7")
  • Drive Bay External: 3.5" or 2.5" HDD/SSD hot-swap x 4
  • Drive Bay Internal: 3.5" x 1, 2.5" x 1 (up to 15 mm), slim optical x 1 (up to 12.7 mm)
  • Cooling System: 80 x 15 mm ball bearing Fan x 3, 4000±10%RPM
  • Power Supply: 2U single or 2U redundant / PS2 (ATx) up to 160 mm deep and 86.3 mm height (not included)
  • Limitation of CPU Cooler: 68 mm
  • Power Connector on HDD Backplane: 4-Pin peripheral x 2
  • Expansion Slot: Low profile PCI / PCIe x 4
  • Front Iinout & Output Port: USB 2.0 x 1, USB 3.1 Gen 1 Type-A x 1
  • Front Buttons: Power On / Off, System reset
  • HDD Backplane: 4 Ports SAS / SATA to Mini-SAS SFF-8087 x 1
  • Main Metal Thickness: 1 mm
  • Capacity: 18.3 Ltr
  • Dimension: 16.93" x 3.48" x 18.9"
