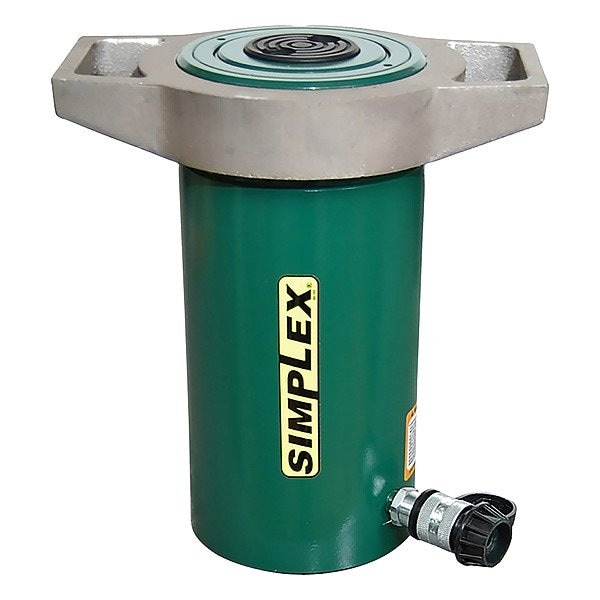

100 TON SPR. RET. S/A 10.25" STROKE CYL.
Mfr # R10010
Zoro # G312655728
product price:Â $4,857.99
/ea
Additional $115.00 delivery surcharge applies per item.
Key Features
Bore Dia.
5.13 in
Max. Pressure
10,000 psi
Cylinder Type
General Purpose
Body Material
Steel
Single Acting/Double Acting
Single Acting
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- R10010
- Zoro #
- G312655728
- UPC #
- 812761020872
- Country of Origin
- United States
Dimensions
- Bore Dia.
- 5.13 in
- Outside Dia.
- 7 in
- Collar Thread Size
- 6.87"-12
- Extended Height
- 27.94 in
- Stroke Length
- 10 1/4 in
- Retracted Height
- 17.69 in
- Plunger Dia.
- 4.13 in
- Base Mounting Thread Size
- 0.75"-10
- Base Bolt Circle Dia.
- 5.5 in
- Nominal Stroke Length
- 10 in
Details
- Item
- Cylinder
- Max. Pressure
- 10,000 psi
- Cylinder Type
- General Purpose
- Body Material
- Steel
- Single Acting/Double Acting
- Single Acting
- Weight
- 110 lb
- Nominal Capacity
- 100 ton
- Max. Push Capacity
- 100 ton
- Oil Capacity Push
- 212 cu in
- Effective Push Area
- 20.63 sq in
Description
Cylinder, Single Acting, General Purpose, Steel, Nominal Capacity 100 ton, Max. Push Capacity 100 ton, Stroke Length 10 1/4 in, Nominal Stroke Length 10 in, Effective Push Area 20.63 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 212 cu in, Retracted Height 17.69 in, Extended Height 27.94 in, Outside Dia. 7 in, Plunger Dia. 4.13 in, Plunger Thread Size Not Applicable, Collar Thread Size 6.87 In.-12, Base Bolt Circle Dia. 5.5 in, Base Mounting Thread Size 0.75 In.-10
