Simplex

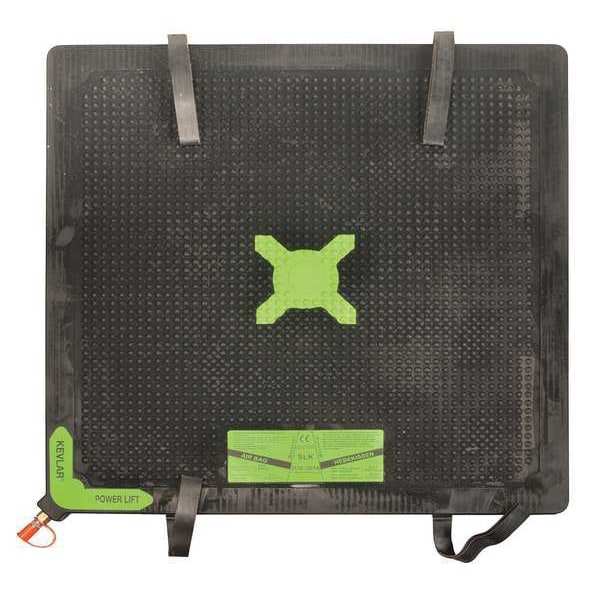

Lifting Bag, 10.8 Ton, 15x15

product price: $1,702.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Pneumatic
  • Connector Type Multiple Options
  • Burst Pressure (PSI) 464 psi
  • Air Required (Cu. Ft.) 3.04 cu ft
  • Max. Lift Height (In.) 7 in
See all product information

Product Information

Dimensions

Max. Lift Height (In.) 7 in
Width (In.) 15 in
Extended Height (In.) 8.1 in
Collapsed Height (In.) 1.1 in
Length (In.) 15 in
Overall Width 15 in
Collapsed Height 1 1/8 in
Maximum Lifting Height 7 in
Bag Length 15 in
Bag Width 15 in
Overall Length 15 in
Inlet Size 1/4 in

Details

Item Lifting Bag
Type Pneumatic
Connector Type Multiple Options
Burst Pressure (PSI) 464 psi
Air Required (Cu. Ft.) 3.04 cu ft
Material 2 Ply Kevlar with Neoprene
Reinforcement Kevlar(R)
Max. Pressure (PSI) 116 psi
Capacity (Tons) 10.8 ton
Air Inlet Type NPT
Weight 8.8 lb
For Fluid Type Compressed Air
Maximum Operating Pressure 116 psi
Reinforcement Material Kevlar(R)
System of Measurement Inch
Series Series B
Air Volume Required 3.04 cu ft
Number of Plies Two-Ply
Weight Capacity 10.8 ton
Bag Material Kevlar(R) with Neoprene
Inlet Gender Female

Description

Lifting Bag, Weight Capacity 10.8 ton, Bag Length 15 in, Bag Width 15 in, Maximum Lifting Height 7 in, Air Volume Required 3.04 cu ft, Bag Material Kevlar(R) with Neoprene, Inlet Size 1/4 in, Air Inlet Type NPT, Number of Plies Two-Ply, Maximum Operating Pressure 116 psi, Reinforcement Material Kevlar(R), Burst Pressure (PSI) 464 psi, Inlet Gender Female, Weight 8.8 lb, For Fluid Type Compressed Air, Series Series B, System of Measurement Inch, Overall Width 15 in, Overall Length 15 in
