Shop All Lifting Bag Accessories
Simplex

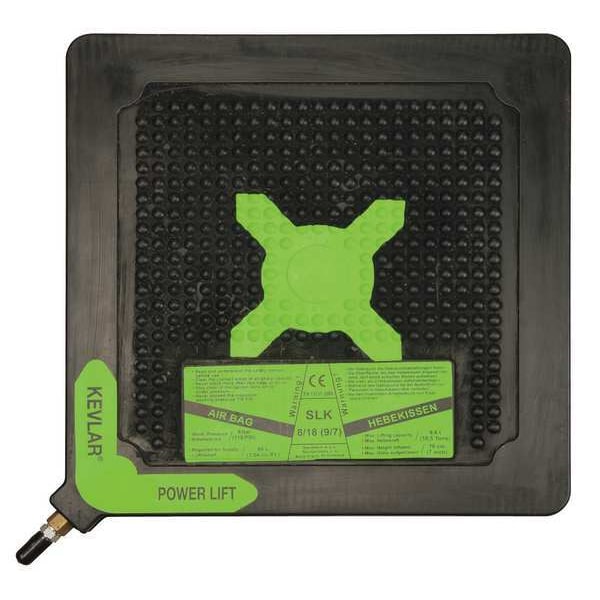

Lifting Bag, 35.3 Ton, 27x27

product price: $3,849.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Pneumatic
  • Max. Lift Height (In.) 14 7/64 in
  • Air Required (Cu. Ft.) 21.9 cu ft
  • Length (In.) 27 in
  • Material 2 Ply Kevlar(R) with Neoprene
See all product information

Product Information

Dimensions

Max. Lift Height (In.) 14 7/64 in
Length (In.) 27 in
Collapsed Height (In.) 1.2 in
Width (In.) 27 in
Extended Height (In.) 15.3 in
Overall Width 27 in
Bag Width 27 in
Collapsed Height 1 3/16 in
Maximum Lifting Height 14 1/8 in
Inlet Size 1/4 in
Overall Length 27 in
Bag Length 27 in

Details

Item Lifting Bag
Type Pneumatic
Air Required (Cu. Ft.) 21.9 cu ft
Material 2 Ply Kevlar(R) with Neoprene
Capacity (Tons) 35.3 ton
Reinforcement Kevlar(R)
Burst Pressure (PSI) 464 psi
Connector Type Multiple Options
Max. Pressure (PSI) 116 psi
Weight 29.9 lb
Reinforcement Material Kevlar(R)
Number of Plies Two-Ply
Inlet Gender Female
Bag Material Kevlar(R) with Neoprene
Air Volume Required 21.9 cu ft
Weight Capacity 35.3 ton
Air Inlet Type NPT
Series Series B
System of Measurement Inch
For Fluid Type Compressed Air
Maximum Operating Pressure 116 psi

Description

Lifting Bag, Weight Capacity 35.3 ton, Bag Length 27 in, Bag Width 27 in, Maximum Lifting Height 14 1/8 in, Air Volume Required 21.9 cu ft, Bag Material Kevlar(R) with Neoprene, Inlet Size 1/4 in, Air Inlet Type NPT, Number of Plies Two-Ply, Maximum Operating Pressure 116 psi, Reinforcement Material Kevlar(R), Burst Pressure (PSI) 464 psi, Inlet Gender Female, Weight 29.9 lb, For Fluid Type Compressed Air, Series Series B, System of Measurement Inch, Overall Width 27 in, Overall Length 27 in
