  11. Radial Ball Bearing, Static Load 440 lb.
Shop All Radial Ball Bearings
Skf

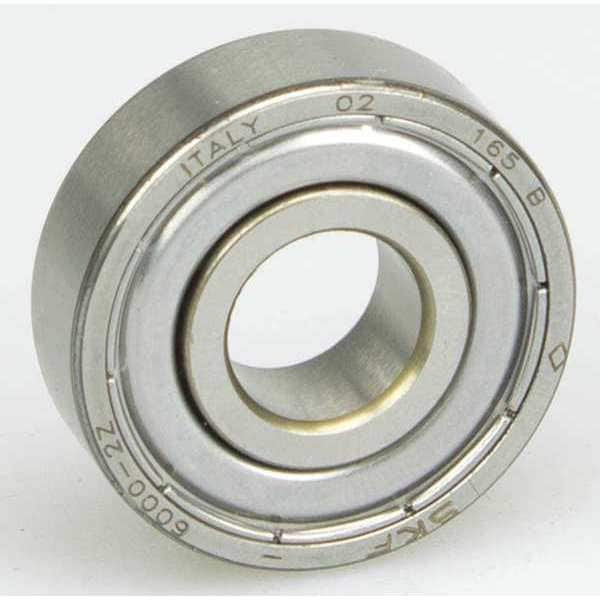

Radial Ball Bearing, Static Load 440 lb.

original price: $20.05
5% off
new price: $18.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Single Row/Double Row Single Row
  • Bearing Type Shielded
  • Seal/Shield Type Double Shielded
  • Cage Material Steel
  • Bore Dia. 10 mm
See all product information

Product Information

Dimensions

Bore Dia. 10 mm
Outside Dia. 26 mm
Width 8 mm
Outside Dia. Tolerance +0/-9 micron
Bore Diameter 10 mm
Fillet Radius 0.3 mm
Bore Diameter Tolerance +0/-8 micron
Outside Diameter 26 mm
Outer Ring Width 8 mm
Outside Diameter Tolerance +0/-9 micron

Details

Item Radial Ball Bearing
Single Row/Double Row Single Row
Bearing Type Shielded
Seal/Shield Type Double Shielded
Cage Material Steel
Lubrication Grease
Industry Number 3VX630
Max. RPM 40,000 RPM
Bore Tolerance +0/-8 micron
Static Load Capacity 440 lb
Shield Material Steel
Temp. Range -40 Degrees to 212 Degrees F
ABEC Tolerance 1
Bearing Material Steel
Dynamic Load Capacity 1,070 lb
Ball Material Alloy Steel
Number of Rows One
Ring Material Grade 100Cr6
Ring Material Alloy Steel
Maximum Speed 34,000 RPM
Dynamic Radial Load Capacity 4.75 kN
Maximum Temperature 212 Degrees F
Retaining Ring Groove No
Maximum Axial Load 1,070 lbf
Static Radial Load Capacity 1.96 kN
Includes Retaining Ring No
ABEC Rating 1
Bearing Industry Number 6000
Closure Double Shielded
System of Measurement Metric
Minimum Temperature -40 Degrees F
Lubricant Material Grease

Description

Radial Ball Bearing, Bearing Industry Number 6000, Bore Diameter 10 mm, Closure Double Shielded, Outer Ring Width 8 mm, Outside Diameter 26 mm, Ring Material Alloy Steel, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-8 micron, Dynamic Radial Load Capacity 4.75 kN, Fillet Radius 0.3 mm, Includes Retaining Ring No, Lubricant Material Grease
