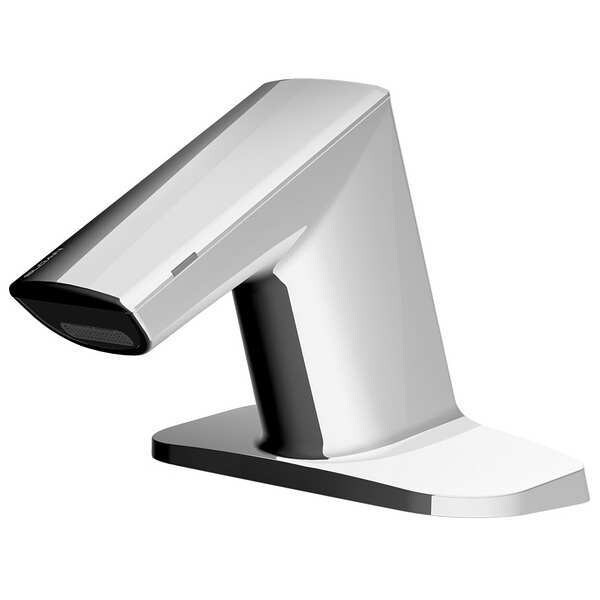

Sensor Single Hole Mount, 1 Hole Angled Straight Bathroom Faucet, Polished chrome

  • Mfr # EFX650.002.0000

  • Zoro # G5286294


product price: $760.99
/ea
Free Shipping & Returns

Key Features

Material
Die Cast Metal
Height
5"
Application
Commercial
Finish
Chrome
Overall Height
5"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EFX650.002.0000
Zoro #
G5286294
UPC #
671254396166
Country of Origin
Switzerland

Dimensions

Height
5"
Overall Height
5"
Spout Length
4 in
Manufacturers Warranty Length
3 yr
Connection Size
3/8" Compression
Spout Height
5 in
Max. Installation Surface Thickness
1 1/2 in
Water Inlet Connection Size
3/8 in
Hose Length
13"
Overall Width
5 4/5 in
Spout Height - Maximum
5 in
Spout Outlet Height
2 in
Inlet Connection Size
3/8 in
For Surface Thickness - Maximum
1 1/2 in
For Mounting Hole Diameter - Minimum
1 3/16 in

Details

Material
Die Cast Metal
Application
Commercial
Finish
Chrome
Item
Bathroom Sensor Faucet
Commercial / Residential
Commercial
Faucet Finish
Chrome
Battery Charger CEC Compliant
Non CEC Compliant
Faucet Handle Type
None
Temp. Control
No
ADA Compliance
ADA Compliant
Faucet Operation
Sensor
CEC Compliant
Non CEC Compliant
Includes
(4) AA Alkaline Battery
Faucet Spout Shape
Angled Straight
Sensor Lead
Infrared
Series
BASYS
Vandal Resistant Features
Vandal Resistant Outlet
Valve Type
Compression
Faucet Spout
Standard
Mounting Hole Center to Center
Single Hole
Flow Rate
1.5 gpm
Drain Type
None
Flow Outlet Type
Aerated
Power Source
Battery
Sensor Range
4 in to 5 in
Body Material
Cast Zinc
Number of Handles
0
Replacement Cartridge
None
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Connection
3/8" Compression
Ligature Resistant
No
Green Certification or Other Recognition
WaterSense Certified
Flow Outlet Type - Faucet
Aerated
Flow Outlet Type (Faucet)
Aerated
Standards
AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, NSF 372, NSF 61/9
Faucet Type
Bathroom Sink Faucet
Mounting Type
Single-Hole Mount
Number of Holes
1
Voltage
6V DC
Amps
2 A
ADA Compliant
Yes
Mounting Type - Faucet
Deck
Compliance
ASME A112.18.1M, CSA B125.1, California Health and Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified to NSF/ANSI 61, Section 9 by CSA, ADA ANSI/ICC A117.1
Residential / Commercial
Commercial
Type
Electronic
Faucet Body Material
Cast Zinc
Valve Type - Faucets
Hot/Cold Cartridge
Temperature Control
Non-Adjustable Temperature
Water Inlet Connection Type
Push in Compression
Spout Reach
4 in
Max. Mounting Hole Center Distance
Single Hole
Faucet Activation
Motion Sensor
Material of Construction
Zinc Die Cast
Sensor Type
Self-Adjusting
Outlet Type
Aerated
Sensor Range - Minimum
4 in
Includes Handle
Handle Not Included
Flow Rate - Maximum
1.5 gpm
Includes Batteries
Batteries Included
Water Supply Type
Hot and Cold Lines
Current
2 A
Warranty
3 yr
Flow Type
Aerated
For Location
Bathroom
Operation Method
Motion Sensor
Inlet Connection Type
Compression
Spout Shape
Angled Straight
Vandal Resistance
Vandal-Resistant Outlet
Product Type
Sensor Faucet
Compatible Cartridge Manufacturer Part Number
None
Time Out
10 sec
Sensor Range - Maximum
5 in
Ligature Resistance
Not Ligature-Resistant
Temperature Control Method
Back-Check Tee
Number of Mounting Holes
1
CEC Compliance
Not CEC Compliant

Description

Bathroom Faucet, Faucet Operation Sensor, Handle Type Sensor, Connection 3/8 In. Compression, 1.5 gpm Flow Rate, Number of Holes 1, Mounting Hole Center to Center 4 In., Body Material Zinc Die Cast, Faucet Spout Standard, ADA Compliant Yes, Drain Type None, Mounting Type Deck, Power Source Battery, Voltage 6VDC, 2 AC Amps, Spout Length 4 In., Sensor Range 4 In. to 5 In., Valve Type Solenoid, Finish Chrome, Overall Height 5 In., Flow Outlet Type Aerated, Temp. Control None
