Slugger By Fein

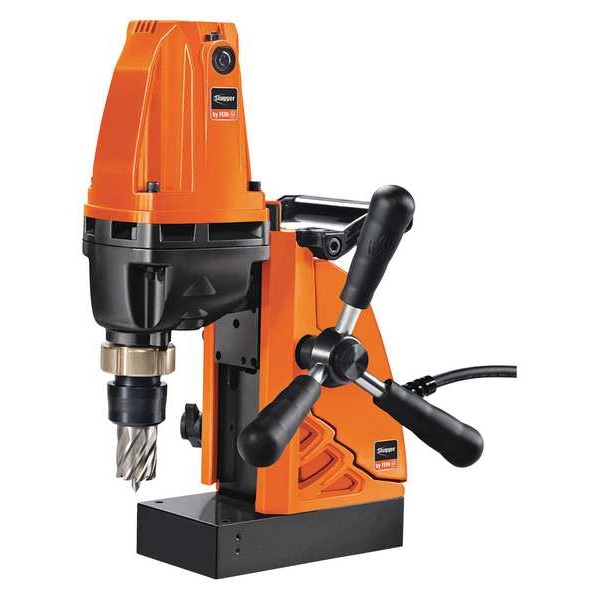

Compact Magnetic Drill Press, 120V

Slugger By Fein Compact Magnetic Drill Press, 120V JME SHORT SLUGGER
Tap to zoom
Hover or click to zoom
$1,683.81
  • Item: Compact Magnetic Drill Press
  • Voltage: 120V AC
  • Spindle Taper: 3/4 in
See full product details
This item ships free.

Total: $1,683.81

Slugger By Fein #JME SHORT SLUGGER Specifications

  • Item: Compact Magnetic Drill Press
  • Voltage: 120V AC
  • Spindle Taper: 3/4 in
  • Drill Travel: 2 1/2 in
  • Capacity Steel: 1 3/16 in
  • No Load RPM: 680
  • Amps: 7.0 A
  • Drill Point Pressure: 1,800 lb
  • Magnet Type: Electro
  • Overall Height: 11 in
  • Corded/Cordless: Corded
  • Reversible: No
  • Drill to Center From Base: 1 7/8 in
  • Tool Length: 9 1/2 in
  • Tool Weight: 22.0 lb
  • Includes: (1) Chip Hook, (2) Centering Pins, Case, Coolant Tank, Safety Guard, Safety Strap, Wrench
  • Corded/Banded: Corded
  • Features: Concealed Motor Wiring Prevents Wires from Snagging or Getting Caught on the Workpiece, Easy Guide Adjustment, Extremely Compact with Perfect Power-To-Weight Ratio for Work at Height and in Tight Spaces, Feed Handwheel Can be Moved from One Side to the other for Use in Special Work Situations, Internal Cooling
  • Motor HP: 1 1/4 hp
  • Minimum Working Speed: 680 RPM
  • Phase: Single-Phase
  • Drilling Capacity in Steel: 1 1/8 in
  • Drilling Capacity in Aluminum: 1 1/8 in
  • Tool Style: Compact
  • Magnetic Force: 8,000 N
  • Base Type: Magnetic
  • Spindle Travel: 2 in
  • Drilling Capacity in Stainless Steel: 1 1/8 in
  • Minimum Spindle Speed: 430 RPM
  • Application: Drilling
  • Drilling Capacity in Masonry: 1 1/8 in
  • Minimum Core Bit Compatibility: 3/4 in
  • Maximum Spindle Speed: 680 RPM
  • Power Down Feed Included: No
  • Overall Length: 9 1/2 in
  • Tapping Compatible: No
  • Number of Pieces: 10
  • Var. Speed: Variable Speed
  • Cord Length: 12.5 ft
  • Power Source: Corded
  • Maximum Core Bit Compatibility: 1 1/8 in
  • Coolant System: Yes
  • Variable Speed: Yes
  • Current: 6.25 A
  • Maximum Working Speed: 680 RPM
  • Spindle Speed: 430 RPM - 680 RPM
  • Country of Origin (subject to change): India

Description

Compact Magnetic Drill Press, Voltage 120V AC, Capacity Steel 1 3/16 in, Drill Travel 2 1/2 in, 3/4 in Spindle Taper, 7.0 A Amps, No Load RPM 680, Magnet Type Electro, Drill Point Pressure 1,800 lb, Drill to Center From Base 1 7/8 in, Overall Height 11 in, Tool Length 9 1/2 in, Tool Weight 22.0 lb, Motor HP 1 1/4 hp, Reversible No
