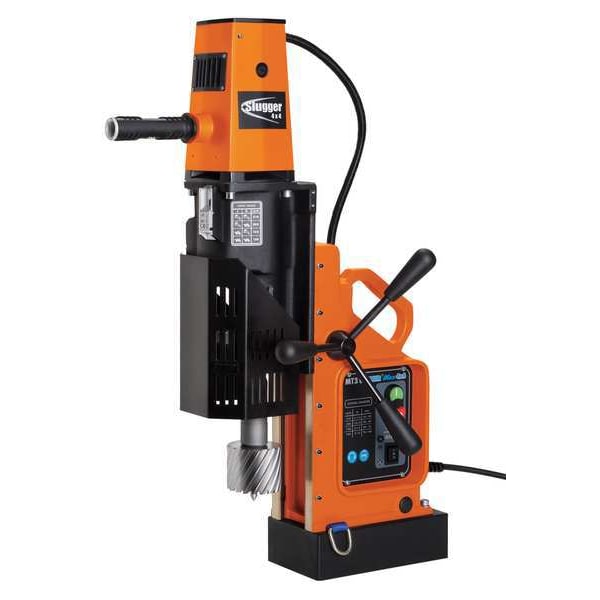

Slugger By Fein Magnetic Drill Press Kit, Var 2 Sp JMU 4 X 4

Magnetic Drill Press Kit, Var 2 Sp (Discontinued)

  • Mfr # JMU 4 X 4
  • Zoro # G2446683
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
JMU 4 X 4
Zoro #
G2446683
UPC #
04014586700045
Country of Origin
Poland

Dimensions

Overall Height
31 1/2 in
Tap Size Capacity
1 1/8 in
Tool Length
16 in
Cord Length
12.5 ft

Details

Item
Magnetic Drill Press
Voltage
120V AC
Spindle Taper
MT3
Drill Travel
8 7/16 in
Capacity Steel
4 in
No Load RPM
150 to 220/290 to 450
Amps
11.7 A
Drill Point Pressure
4,833 lb
Magnet Type
Electro
Corded/Cordless
Corded
Includes
Cutter Shield, Safety Strap, Storage Case
Drill to Center From Base
2 9/16 in
Motor HP
1 4/5 hp
Tool Weight
73.0 lb
Corded/Banded
Corded
Features
Magnet Circuitry Prevents Drill Motor from Starting on Non-Ferrous Material or Ferrous Material that is TooThin to Allow Proper Magnetic Adhesion and will also Shut Motor Down if Magnet Should Break Free from the Work
Reversible
No
Tapping Capacity in Cast Iron
1 1/8 in
Minimum Working Speed
100 RPM
Tapping Compatible
No
Drilling Capacity in Cast Iron
1 in
Tapping Capacity in Wood
1 1/8 in
Coolant System
Yes
Current
11.7 A
Tapping Capacity in Aluminum
1 1/8 in
Drilling Capacity in Aluminum
4 in
Var. Speed
Variable Speed
Drilling Capacity in Steel
4 in
Drilling Capacity in Stainless Steel
3 7/8 in
Minimum Spindle Speed
100 RPM
Power Down Feed Included
No
Drilling Capacity in Wood
1 in
Power Source
Corded
Base Type
Magnetic
Tapping Capacity in Masonry
1 1/8 in
Drilling Capacity in Masonry
4 in
Maximum Working Speed
310 RPM
Magnetic Force
21,500 N
Number of Pieces
7
Phase
Single-Phase
Tool Style
Large
Number of Spindle Speeds
4
Application
Drilling
Chuck Style
Keyed
Maximum Spindle Speed
450 RPM
Maximum Core Bit Compatibility
4 in
Spindle Speed
100 RPM - 450 RPM
Tapping Capacity in Steel
1 1/8 in
Variable Speed
Yes

Description

Magnetic Drill Press, Magnet Type Electro, Variable Speed Yes, Drilling Capacity in Steel 4 in, Drilling Capacity in Wood 1 in, Drilling Capacity in Cast Iron 1 in, Drill Travel 8 7/16 in, Maximum Spindle Speed 450 RPM, Minimum Spindle Speed 100 RPM, Current 11.7 A, Voltage 120V AC, Phase Single-Phase, Base Type Magnetic, Spindle Taper MT3, Chuck Size 3/4 in, Chuck Style Keyed, Drill Point Pressure 4,833 lb, Power Down Feed Included No, Coolant System Yes, Tool Style Large, Tapping Compatible No
