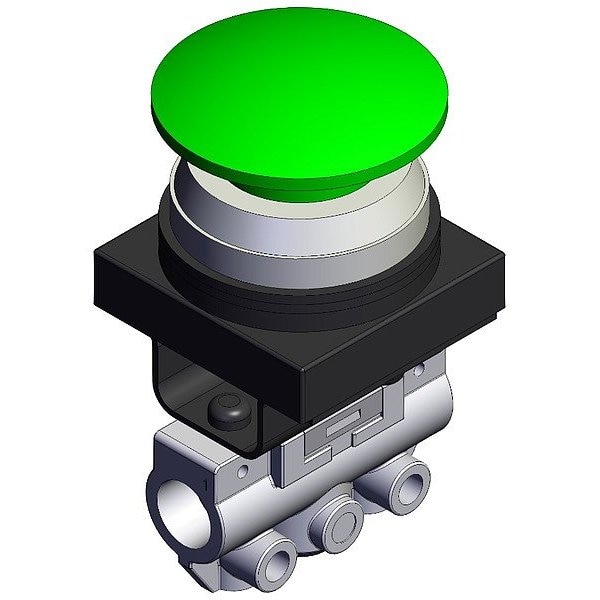

2/3 PORT MECHANICAL VALVE
Mfr # VM130-N01-30GA
Zoro # G015197204
product price:Â
$
23.19
/ea
Key Features
Series
VM100
Overall Height
76 5/8 mm
Overall Length
44 mm
Overall Width
40 mm
Body Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VM130-N01-30GA
- Zoro #
- G015197204
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 76 5/8 mm
- Overall Length
- 44 mm
- Overall Width
- 40 mm
- Valve Port Connection Size
- 1/8 in
- Wire Rope Length
- 44 mm
- Length
- 44 mm
Details
- Item
- Mechanical Valve
- Series
- VM100
- Body Material
- Aluminum
- Lubrication
- Lubrication Not Required
- Product Type
- Manual Air Control Valve
- Coefficient of Volume (Cv)
- 0.1
- Operating Pressure - Minimum
- -100 kPa
- Operating Temperature - Maximum
- 60 Degrees C
- For Media
- Air
- Body Style
- Side-Ported
- Valve Port Connection Type
- NPT
- Actuator Color
- Green
- Number of Ports
- 3
- Operating Temperature - Minimum
- -5 Degrees C
- Operating Pressure - Maximum
- 1 MPa
- Actuator Type
- Button
- Standards
- RoHS Compliant
Description
PORT MECHANICAL VALVE 2/3
