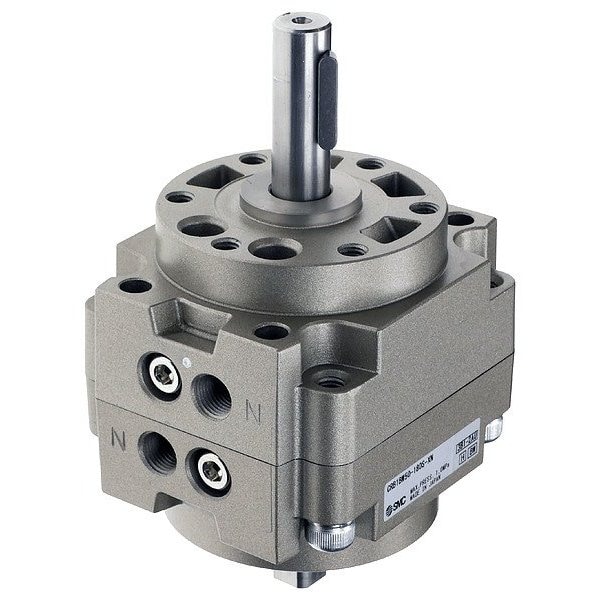

ACTUATOR, ROTARY, MINI/VANE
- Mfr # CRB1BW50-180S-XN
- Zoro # G313344768
product price:Â
$
204.99
/ea
Free Shipping & Returns
Key Features
Overall Length
67 mm
Magnetic Piston
Non-Magnetic Piston
Standards
RoHS Compliant
Cushion Type
Rubber Cushion
Overall Height
129 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CRB1BW50-180S-XN
- Zoro #
- G313344768
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Length
- 67 mm
- Overall Height
- 129 mm
- Inlet Size
- 1/8 in
- Bore Diameter
- 50 mm
- Keyway Width
- 4 mm
- Keyway Length
- 20 mm
- Overall Width
- 78 mm
- Shaft Length
- 39.5 mm
- Shaft Diameter
- 12 mm
- Keyway Depth
- 4 mm
- Wire Rope Length
- 67 mm
- Length
- 67 mm
Description
Rotary Actuator, Actuator Style Single Vane, Maximum Output Torque 13 N-m, Rotation Angle 180 Degrees , Bore Diameter 50 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 12 mm, Shaft Length 39.5 mm, Inlet Size 1/8 in, Air Inlet Type NPT, Cushion Type Rubber Cushion, Magnetic Piston Non-Magnetic Piston, Weight 0.79 kg, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 21.76 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant, For Fluid Type Air
