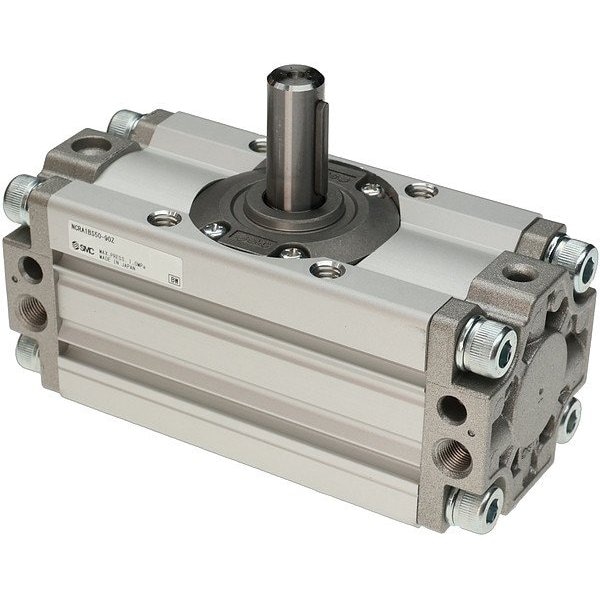

Actuator, Rotary, Rack and Pinion Type
Mfr # NCRA1BS50-90Z
Zoro # G014534024
product price:Â $260.99
/ea
Free Shipping & Returns
Key Features
Cushion Type
None
Shaft Length
33.53 mm
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
140 Degrees F
Standards
RoHS Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NCRA1BS50-90Z
- Zoro #
- G014534024
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Shaft Length
- 33.53 mm
- Overall Width
- 61.98 mm
- Overall Length
- 144.02 mm
- Overall Height
- 98.04 mm
- Shaft Diameter
- 15.75 mm
- Inlet Size
- 1/8 in
- Bore Diameter
- 50 mm
- Wire Rope Length
- 144.02 mm
Details
- Item
- Rotary Air Actuator
- Cushion Type
- None
- Minimum Operating Temperature
- 32 Degrees F
- Maximum Operating Temperature
- 140 Degrees F
- Standards
- RoHS Compliant
- Air Inlet Center to Center Distance
- 135 5/8 mm
- Maximum Output Torque
- 165 in-lb
- Mount Style
- Basic
- Maximum Operating Pressure
- 145 psi
- Magnetic Piston
- Non-Magnetic Piston
- System of Measurement
- Metric
- Actuator Style
- Single Rack
- Minimum Operating Pressure
- 14.5 psi
- Air Inlet Type
- NPT
- Rotation Angle
- 90 Degrees
- Output Shaft Type
- Keyed Shaft
Description
Rotary Air Actuator, Actuator Style Single Rack, Maximum Output Torque 165 in-lb, Rotation Angle 90 Degrees , Bore Diameter 50 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 15.75 mm, Shaft Length 33.53 mm, Inlet Size 1/8 in, Air Inlet Type NPT, Cushion Type None, Magnetic Piston Non-Magnetic Piston, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 14.5 psi, Minimum Operating Temperature 32 Degrees F, Standards RoHS Compliant, System of Measurement Metric
