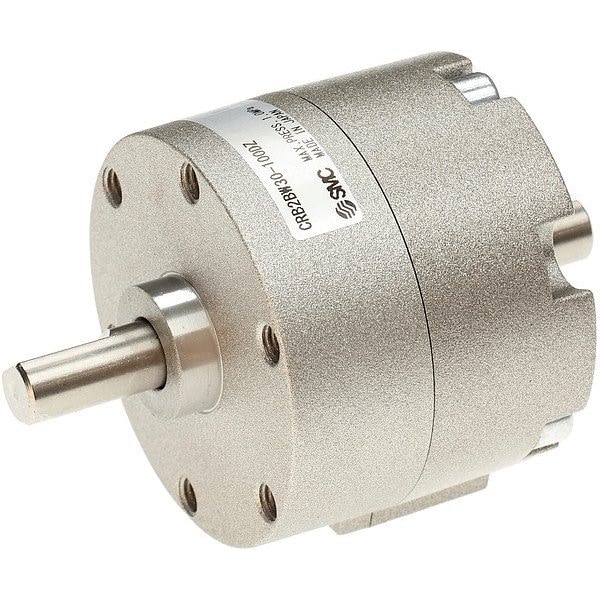

ACTUATOR, ROTARY, VANE TYPE
Mfr # CRB2BW40-100DZ
Zoro # G913345158
product price:Â
$
265.99
/ea
Free Shipping & Returns
Key Features
Magnetic Piston
Non-Magnetic Piston
Cushion Type
Rubber Cushion
Standards
RoHS Compliant
Air Inlet Center to Center Distance
20 mm
Mount Style
Basic
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CRB2BW40-100DZ
- Zoro #
- G913345158
- UPC #
- -
- Country of Origin
- Japan
- Item
- Rotary Actuator
- Magnetic Piston
- Non-Magnetic Piston
- Cushion Type
- Rubber Cushion
- Standards
- RoHS Compliant
- Air Inlet Center to Center Distance
- 20 mm
- Mount Style
- Basic
- Output Shaft Type
- Keyed Shaft
- Housing Material
- Aluminum Alloy
- Weight
- 0.44 kg
- Maximum Operating Temperature
- 140 Degrees F
- Minimum Operating Pressure
- 21.76 psi
- For Fluid Type
- Air
- Maximum Output Torque
- 7.8 N-m
- Housing Material Finish
- Painted
- Rotation Angle
- 90 Degrees
- System of Measurement
- Metric
- Minimum Operating Temperature
- 41 Degrees F
- Maximum Operating Pressure
- 145 psi
- Actuator Style
- Double Vane
- Keyway Type
- Parallel Key
- Air Inlet Type
- Metric
- Port Location
- Side Ported
Description
Rotary Actuator, Actuator Style Double Vane, Maximum Output Torque 7.8 N-m, Rotation Angle 90 Degrees , Bore Diameter 40 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 10 mm, Shaft Length 23.5 mm, Inlet Size M5 x 0.8, Air Inlet Type Metric, Cushion Type Rubber Cushion, Magnetic Piston Non-Magnetic Piston, Weight 0.44 kg, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 21.76 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant
