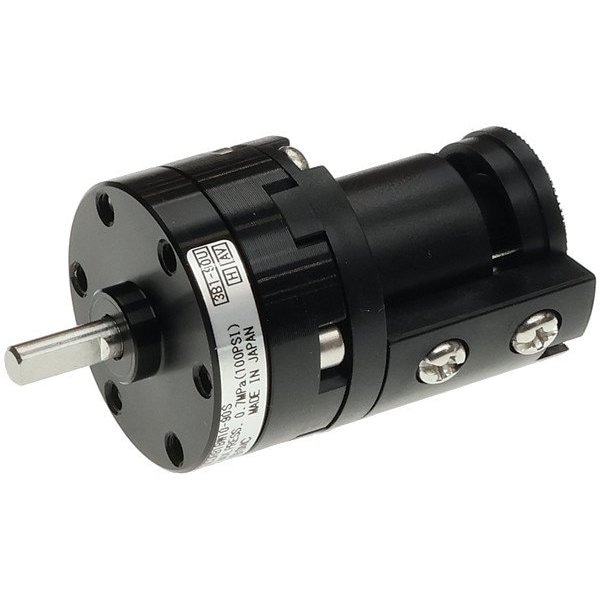

ACTUATOR, ROTARY, VANE TYPE
Mfr # NCDRB1BW10-90S
Zoro # G314533987
product price:Â $144.99
/ea
Free Shipping & Returns
Key Features
Cushion Type
None
Shaft Length
10.92 mm
Maximum Operating Pressure
101.53 psi
Inlet Size
#10-32
Maximum Output Torque
1.4 in-lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NCDRB1BW10-90S
- Zoro #
- G314533987
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Shaft Length
- 10.92 mm
- Inlet Size
- #10-32
- Shaft Diameter
- 15.88 mm
- Overall Length
- 28.96 mm
- Bore Diameter
- 10 mm
- Wire Rope Length
- 28.96 mm
Details
- Item
- Rotary Air Actuator
- Cushion Type
- None
- Maximum Operating Pressure
- 101.53 psi
- Maximum Output Torque
- 1.4 in-lb
- Standards
- RoHS Compliant
- Magnetic Piston
- Magnetic Piston
- Minimum Operating Pressure
- 20.31 psi
- Output Shaft Type
- Keyed Shaft
- System of Measurement
- Metric
- Actuator Style
- Single Vane
- Weight
- 0.05 lb
- Minimum Operating Temperature
- 41 Degrees F
- Maximum Operating Temperature
- 140 Degrees F
- For Fluid Type
- Air
- Mount Style
- Basic
- Rotation Angle
- 90 Degrees
- Air Inlet Type
- UNF
- Port Location
- Side Ported
Description
Rotary Air Actuator, Actuator Style Single Vane, Maximum Output Torque 1.4 in-lb, Rotation Angle 90 Degrees , Bore Diameter 10 mm, Maximum Operating Pressure 101.53 psi, Shaft Diameter 15.88 mm, Shaft Length 10.92 mm, Inlet Size #10-32, Air Inlet Type UNF, Cushion Type None, Magnetic Piston Magnetic Piston, Weight 0.05 lb, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 20.31 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant, For Fluid Type Air
