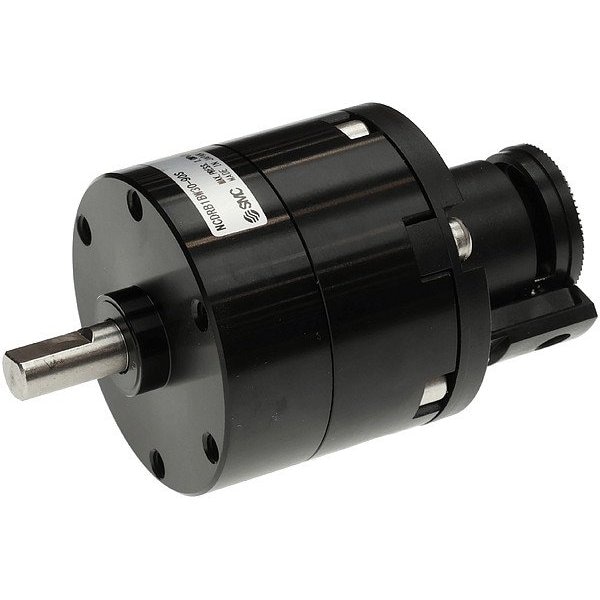

ACTUATOR, ROTARY, VANE TYPE
Mfr # NCDRB1BW30-90S
Zoro # G515380120
product price:Â $196.99
/ea
Free Shipping & Returns
Key Features
Cushion Type
Rubber Cushion
Actuator Style
Single Vane
Air Inlet Type
UNF
System of Measurement
Metric
Output Shaft Type
Keyed Shaft
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NCDRB1BW30-90S
- Zoro #
- G515380120
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Bore Diameter
- 30 mm
- Shaft Length
- 17.02 mm
- Inlet Size
- #10-32
- Shaft Diameter
- 7.94 mm
- Overall Length
- 50.04 mm
- Wire Rope Length
- 50.04 mm
Details
- Item
- Rotary Air Actuator
- Cushion Type
- Rubber Cushion
- Actuator Style
- Single Vane
- Air Inlet Type
- UNF
- System of Measurement
- Metric
- Output Shaft Type
- Keyed Shaft
- Magnetic Piston
- Magnetic Piston
- Minimum Operating Pressure
- 14.5 psi
- Maximum Operating Temperature
- 140 Degrees F
- Minimum Operating Temperature
- 41 Degrees F
- Maximum Operating Pressure
- 33.36 psi
- Standards
- RoHS Compliant
- Weight
- 0.44 lb
- Mount Style
- Basic
- Rotation Angle
- 90 Degrees
- For Fluid Type
- Air
- Maximum Output Torque
- 32 in-lb
- Port Location
- Side Ported
Description
Rotary Air Actuator, Actuator Style Single Vane, Maximum Output Torque 32 in-lb, Rotation Angle 90 Degrees , Bore Diameter 30 mm, Maximum Operating Pressure 33.36 psi, Shaft Diameter 7.94 mm, Shaft Length 17.02 mm, Inlet Size #10-32, Air Inlet Type UNF, Cushion Type Rubber Cushion, Magnetic Piston Magnetic Piston, Weight 0.44 lb, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 14.5 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant
