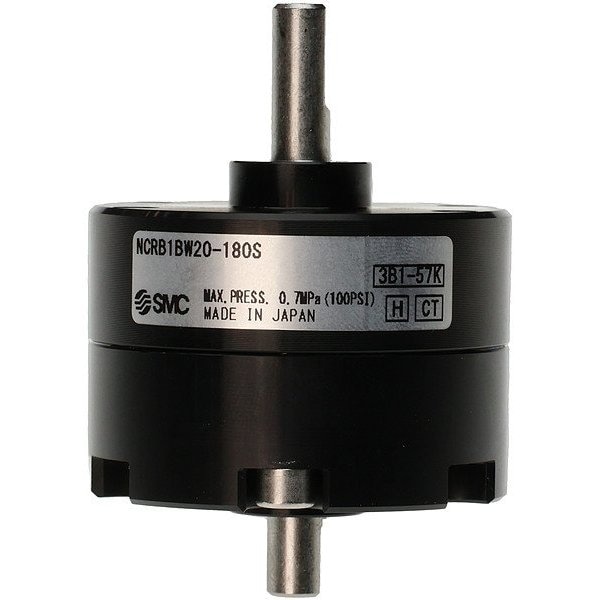

ACTUATOR, ROTARY, VANE TYPE
- Mfr # NCRB1BW20-180S
- Zoro # G015380118
product price:Â
$
120.99
/ea
Free Shipping & Returns
Key Features
Cushion Type
Rubber Cushion
Maximum Output Torque
8.6 in-lb
System of Measurement
Metric
Minimum Operating Temperature
41 Degrees F
Maximum Operating Pressure
101.53 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NCRB1BW20-180S
- Zoro #
- G015380118
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Inlet Size
- #10-32
- Bore Diameter
- 20 mm
- Shaft Diameter
- 5.95 mm
- Shaft Length
- 15.49 mm
- Overall Length
- 41.91 mm
- Overall Height
- 58.93 mm
- Wire Rope Length
- 41.91 mm
- Length
- 41.91 mm
Description
Rotary Air Actuator, Actuator Style Single Vane, Maximum Output Torque 8.6 in-lb, Rotation Angle 180 Degrees , Bore Diameter 20 mm, Maximum Operating Pressure 101.53 psi, Shaft Diameter 5.95 mm, Shaft Length 15.49 mm, Inlet Size #10-32, Air Inlet Type UNF, Cushion Type Rubber Cushion, Magnetic Piston Non-Magnetic Piston, Weight 0.24 lb, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 20.31 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant
