Shop SMC

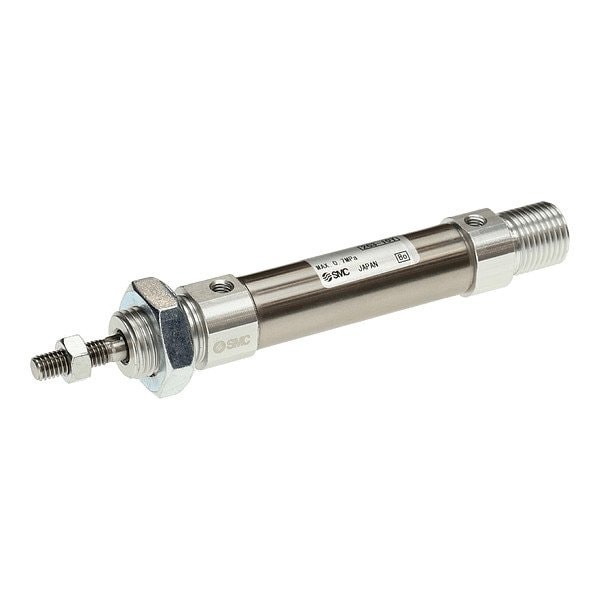

Air Cylinder, ISO Round, Double End, 337mm

  • Mfr # C85E25-200

  • Zoro # G514534890

product price:
$
70.59
/ea

Key Features

Cylinder Action
Double Acting
Body Material
Stainless Steel
Rod Thread Length
22 mm
Cylinder Type
Round Body
Magnetic Piston
Non-Magnetic Piston
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C85E25-200
Zoro #
G514534890
UPC #
-
Country of Origin
Czechia

Dimensions

Rod Thread Length
22 mm
Rod Diameter
10 mm
Bore Diameter
25 mm
Rod Thread Size
M10 x 1.25
Body Diameter
22 mm
Inlet Size
1/8 in
Stroke Length
200 mm
End Cap Length
15 mm

Details

Item
Round Body Cylinder
Cylinder Action
Double Acting
Body Material
Stainless Steel
Cylinder Type
Round Body
Magnetic Piston
Non-Magnetic Piston
End Cap Material
Aluminum
Piston Rod Material Finish
Chrome Plated
For Fluid Type
Air
Cylinder Repair
Repairable
Cushion Type
Rubber Cushion
Piston Material
Aluminum
Piston Material Finish
Chromate Coated
Maximum Operating Pressure
145 MPa
Series
C85
Maximum Operating Temperature
176 Degrees F
Weight
0.25 kg
Body Material Finish
Anodized
Minimum Operating Temperature
-4 Degrees F
Minimum Operating Pressure
7.25 MPa
Standards
CETOP RP52P, ISO 6432, RoHS Compliant
Air Inlet Type
G
End Cap Material Finish
Anodized
Number of Rods
Single Rod
System of Measurement
Metric
Piston Rod Material
Carbon Steel
Rod Gender
Male
Air Inlet Center to Center Distance
249 mm
Rod Rotation
Rotating Rod
Lead Wire Type
No Lead Wire
Piston Rod Material Grade
C45
Actuation Type
Air Extend, Air Retract
Body Material Grade
316
Inlet Gender
Female
Mounting Orientation
Horizontal, Vertical

Description

Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Repairable, Magnetic Piston Non-Magnetic Piston, Mounting Type Basic, Bore Diameter 25 mm, Cushion Type Rubber Cushion, Stroke Length 200 mm, Inlet Size 1/8 in, Air Inlet Type G, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front
