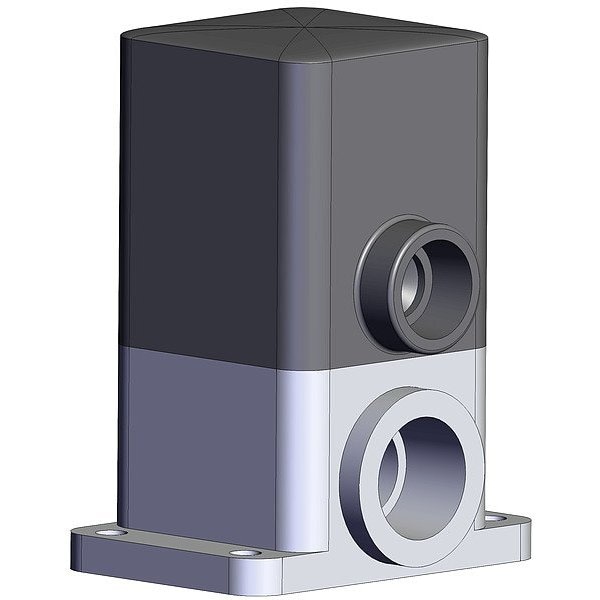

Chemical Liquid Valve, Female, NPT
Mfr # LVA20-02N-B-Z
Zoro # G222440988
product price:Â $121.99
/ea
Free Shipping & Returns
Key Features
Operating Temperature - Maximum
60 Degrees C
Overall Height
54.7 mm
Diaphragm Material
PTFE
Actuator Enclosure Material
Polyphenylene Sulfide
For Media
Chemicals
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LVA20-02N-B-Z
- Zoro #
- G222440988
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 54.7 mm
- Wire Rope Length
- 36 mm
- Nominal Valve Size
- 1/4 in
- Connection Size - Side 1
- 1/4 in
- Connection Size - Side 2
- 1/4 in
- Inlet Connection Size
- 1/4 in
- Overall Length
- 36 mm
Description
Chemical Liquid Valve, Coefficient of Volume (Cv) 0.4, Nominal Valve Size 1/4 in, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Chemicals, Diaphragm Material PTFE, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Valve Deactivated State Normally Closed (NC), Body Material Polyphenylene Sulfide, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Closed, Overall Length 36 mm
Restrictions
This is a restricted item in the USA. It cannot be used for potable water applications.
