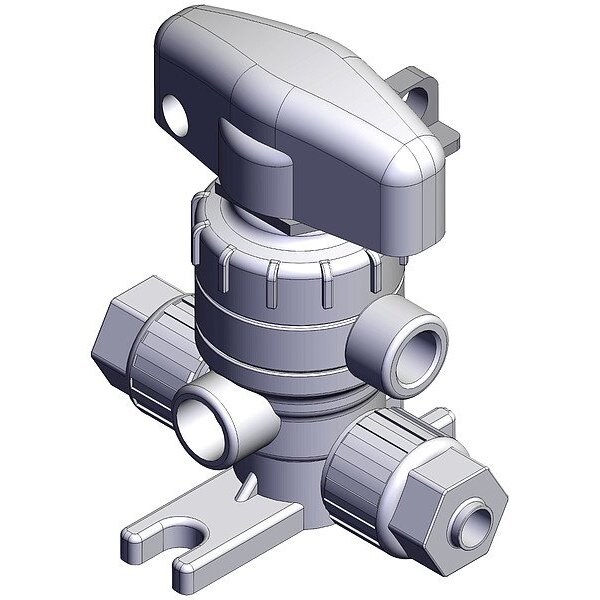

High purity chemical valve
Mfr # LVQH20-Z07-1
Zoro # G322441670
product price:Â
$
251.99
/ea
Free Shipping & Returns
Key Features
Coefficient of Volume (Cv)
0.35
For Media
Chemicals
Inlet Connection Gender
Female
Ambient Temperature - Minimum
0 Degrees C
Ambient Temperature - Maximum
60 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LVQH20-Z07-1
- Zoro #
- G322441670
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Nominal Valve Size
- 1/4 in
- Wire Rope Length
- 70 mm
- Overall Length
- 70 mm
- Length
- 70 mm
Details
- Coefficient of Volume (Cv)
- 0.35
- For Media
- Chemicals
- Inlet Connection Gender
- Female
- Ambient Temperature - Minimum
- 0 Degrees C
- Item
- Chemical Liquid Valve
- Ambient Temperature - Maximum
- 60 Degrees C
- Connection Gender - Side 1
- Female
- Diaphragm Material
- PTFE
- Maximum Pressure - Operating
- 0.5 MPa
- Operating Temperature - Maximum
- 0 Degrees C
- Handle Type
- Lever
- Connection Type - Side 1
- Tube
- Connection Gender - Side 2
- Female
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
- Connection Type - Side 2
- Tube
- Operating Temperature - Minimum
- 0 Degrees C
- Body Material
- PFA
Description
Chemical Liquid Valve, Coefficient of Volume (Cv) 0.35, Nominal Valve Size 1/4 in, Connection Type - Side 1 Tube, Connection Type - Side 2 Tube, For Media Chemicals, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL, Diaphragm Material PTFE, Seal Material Not Applicable, Maximum Pressure - Operating 0.5 MPa, Operating Temperature - Maximum 0 Degrees C, Handle Type Lever, Body Material PFA, Inlet Connection Gender Female, Overall Length 70 mm
