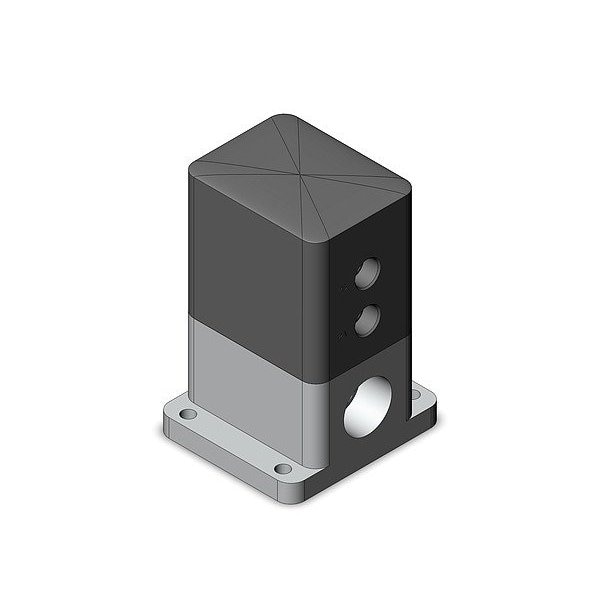

Chemical Liquid Valve, Female, NPT
Mfr # LVA40-04N-B
Zoro # G422441051
product price:Â
$
201.99
/ea
Free Shipping & Returns
Key Features
Inlet Connection Gender
Female
Connection Size - Side 2
1/2 in
Stem Material
Polyphenylene Sulfide
Connection Size - Side 1
1/2 in
Maximum Pressure - Operating
1 MPa
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVA40-04N-B
- Zoro #
- G422441051
- UPC #
- -
- Country of Origin
- Japan
- Inlet Connection Gender
- Female
- Stem Material
- Polyphenylene Sulfide
- Maximum Pressure - Operating
- 1 MPa
- Body Material
- Polyphenylene Sulfide
- Ambient Temperature - Maximum
- 60 Degrees C
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
- Item
- Chemical Liquid Valve
- Connection Type - Side 1
- NPT
- Diaphragm Material
- PTFE
- Operating Temperature - Minimum
- 0 Degrees C
- Connection Type - Side 2
- NPT
- Actuator Operation
- Air to Air
- Connection Gender - Side 2
- Female
- Coefficient of Volume (Cv)
- 3.3
- Inlet Connection Type
- NPT
- Fail Safe Position
- Fail Closed
- Ambient Temperature - Minimum
- 0 Degrees C
- Valve Deactivated State
- Normally Closed (NC)
- Connection Gender - Side 1
- Female
- Actuator Enclosure Material
- Polyphenylene Sulfide
- For Media
- Chemicals
- Operating Temperature - Maximum
- 60 Degrees C
Description
Chemical Liquid Valve, Coefficient of Volume (Cv) 3.3, Nominal Valve Size 1/2 in, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Chemicals, Diaphragm Material PTFE, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Valve Deactivated State Normally Closed (NC), Body Material Polyphenylene Sulfide, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Closed, Overall Length 60 mm
