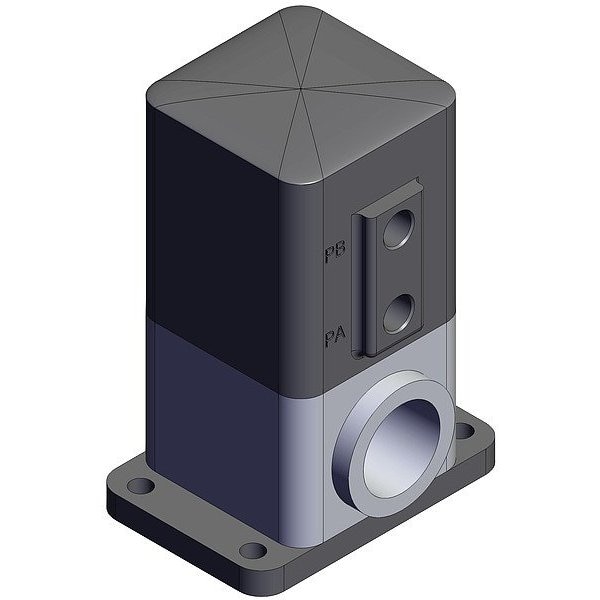

Chemical Liquid Valve, Female, NPT
Mfr # LVA22-02N-C
Zoro # G522441500
product price:Â
$
176.99
/ea
Free Shipping & Returns
Key Features
Actuator Operation
Air to Spring
Inlet Connection Gender
Female
Nominal Valve Size
1/4 in
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Stem Material
Polyphenylene Sulfide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVA22-02N-C
- Zoro #
- G522441500
- UPC #
- -
- Country of Origin
- Japan
- Actuator Operation
- Air to Spring
- Inlet Connection Gender
- Female
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
- Stem Material
- Polyphenylene Sulfide
- Ambient Temperature - Maximum
- 60 Degrees C
- Body Material
- PFA
- Operating Temperature - Minimum
- 0 Degrees C
- Diaphragm Material
- PTFE
- Operating Temperature - Maximum
- 60 Degrees C
- Ambient Temperature - Minimum
- 0 Degrees C
- Connection Gender - Side 2
- Female
- For Media
- Chemicals
- Connection Gender - Side 1
- Female
- Connection Type - Side 1
- NPT
- Actuator Enclosure Material
- Polyphenylene Sulfide
- Coefficient of Volume (Cv)
- 0.4
- Fail Safe Position
- Fail Last
- Inlet Connection Type
- NPT
- Item
- Chemical Liquid Valve
- Connection Type - Side 2
- NPT
- Maximum Pressure - Operating
- 1 MPa
Description
Chemical Liquid Valve, Coefficient of Volume (Cv) 0.4, Nominal Valve Size 1/4 in, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Chemicals, Diaphragm Material PTFE, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Body Material PFA, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Last, Overall Length 36 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
