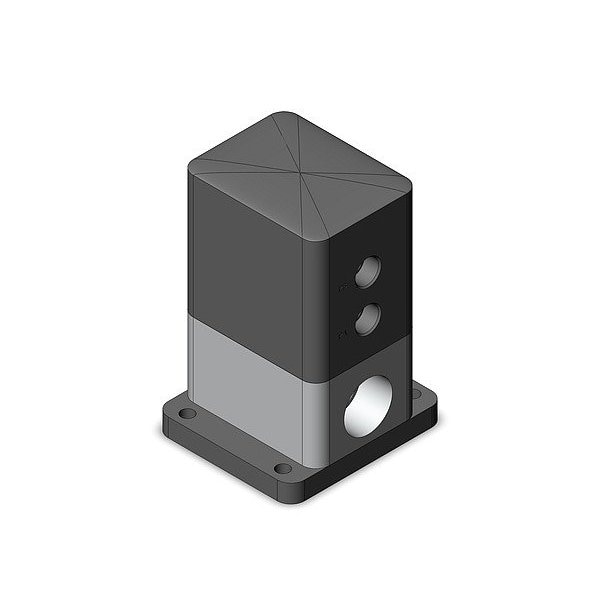

Chemical Liquid Valve, Female, NPT
Mfr # LVA40-04N-C
Zoro # G022441635
product price:Â
$
358.99
/ea
Free Shipping & Returns
Key Features
Coefficient of Volume (Cv)
3.3
Connection Size - Side 1
1/2 in
Wire Rope Length
60 mm
Connection Gender - Side 2
Female
Ambient Temperature - Minimum
0 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVA40-04N-C
- Zoro #
- G022441635
- UPC #
- -
- Country of Origin
- Japan
- Coefficient of Volume (Cv)
- 3.3
- Connection Gender - Side 2
- Female
- Ambient Temperature - Minimum
- 0 Degrees C
- Actuator Enclosure Material
- Polyphenylene Sulfide
- Fail Safe Position
- Fail Closed
- For Media
- Chemicals
- Operating Temperature - Minimum
- 0 Degrees C
- Actuator Operation
- Air to Air
- Inlet Connection Gender
- Female
- Body Material
- PFA
- Connection Gender - Side 1
- Female
- Item
- Chemical Liquid Valve
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
- Inlet Connection Type
- NPT
- Ambient Temperature - Maximum
- 60 Degrees C
- Stem Material
- Polyphenylene Sulfide
- Maximum Pressure - Operating
- 1 MPa
- Diaphragm Material
- PTFE
- Connection Type - Side 2
- NPT
- Connection Type - Side 1
- NPT
- Valve Deactivated State
- Normally Closed (NC)
- Operating Temperature - Maximum
- 60 Degrees C
Description
Chemical Liquid Valve, Coefficient of Volume (Cv) 3.3, Nominal Valve Size 1/2 in, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Chemicals, Diaphragm Material PTFE, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Valve Deactivated State Normally Closed (NC), Body Material PFA, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Closed, Overall Length 60 mm
