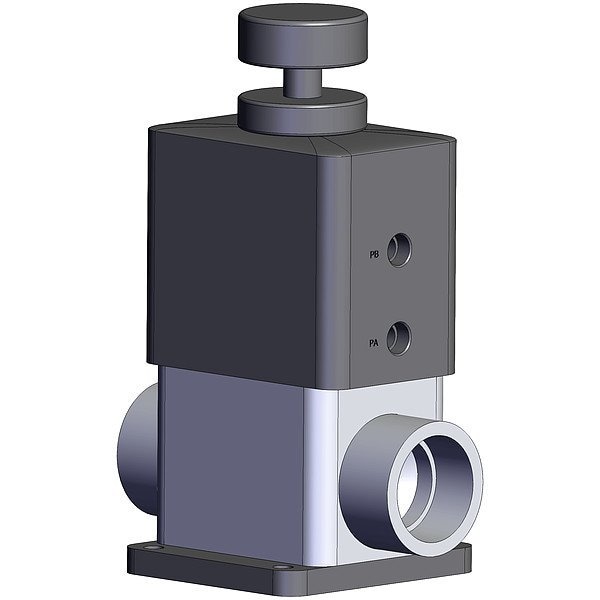

Chemical Liquid Valve, Female, NPT
- Mfr # LVA60-10N-C1
- Zoro # G222442029
product price:Â
$
528.99
/ea
Free Shipping & Returns
Key Features
Body Material
PFA
Ambient Temperature - Maximum
60 Degrees C
Wire Rope Length
75 mm
Actuator Operation
Air to Air
Nominal Valve Size
1 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LVA60-10N-C1
- Zoro #
- G222442029
- UPC #
- -
- Country of Origin
- Japan
- Body Material
- PFA
- Ambient Temperature - Maximum
- 60 Degrees C
- Actuator Operation
- Air to Air
- Inlet Connection Type
- NPT
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
- Valve Deactivated State
- Normally Closed (NC)
- Coefficient of Volume (Cv)
- 8
- Maximum Pressure - Operating
- 1 MPa
- Connection Gender - Side 2
- Female
- Connection Type - Side 2
- NPT
- For Media
- Chemicals
- Connection Type - Side 1
- NPT
- Ambient Temperature - Minimum
- 0 Degrees C
- Fail Safe Position
- Fail Closed
- Connection Gender - Side 1
- Female
- Operating Temperature - Maximum
- 60 Degrees C
- Diaphragm Material
- PTFE
- Actuator Enclosure Material
- Polyphenylene Sulfide
- Operating Temperature - Minimum
- 0 Degrees C
- Inlet Connection Gender
- Female
- Stem Material
- Polyphenylene Sulfide
- Item
- Chemical Liquid Valve
Description
Chemical Liquid Valve, Coefficient of Volume (Cv) 8, Nominal Valve Size 1 in, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Chemicals, Diaphragm Material PTFE, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Valve Deactivated State Normally Closed (NC), Body Material PFA, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Closed, Overall Length 75 mm
