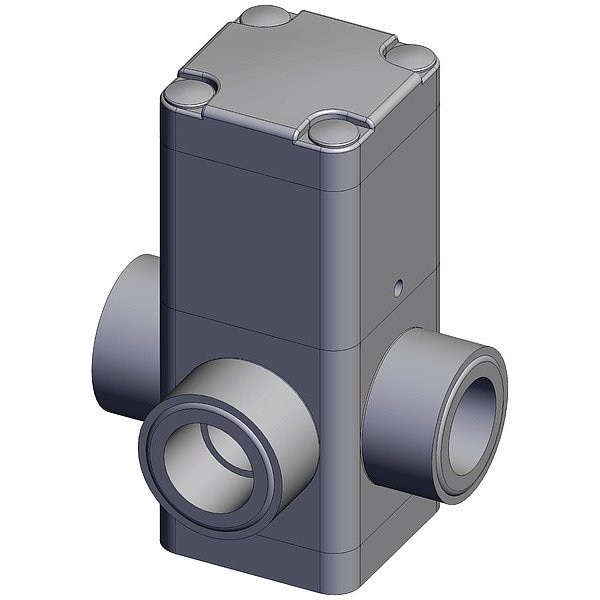

Chemical Liquid Valve, Female, NPT

  • Mfr # LVA200-02N-C

  • Zoro # G022441000

product price:
$
285.17
/ea
Free Shipping & Returns

Key Features

Connection Size - Side 1
1/4 in
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Inlet Connection Size
1/4 in
Connection Gender - Side 1
Female
Nominal Valve Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LVA200-02N-C
Zoro #
G022441000
UPC #
-
Country of Origin
Japan
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Connection Gender - Side 1
Female
Maximum Pressure - Operating
1 MPa
Connection Type - Side 1
NPT
Ambient Temperature - Maximum
60 Degrees C
Ambient Temperature - Minimum
0 Degrees C
Coefficient of Volume (Cv)
0.4
Connection Gender - Side 2
Female
Fail Safe Position
Fail Closed
Item
Chemical Liquid Valve
Stem Material
Polyphenylene Sulfide
Actuator Enclosure Material
Polyphenylene Sulfide
Body Material
PFA
Inlet Connection Type
NPT
Connection Type - Side 2
NPT
Inlet Connection Gender
Female
Operating Temperature - Minimum
0 Degrees C
For Media
Chemicals
Operating Temperature - Maximum
60 Degrees C
Actuator Operation
Air to Air

Description

Chemical Liquid Valve, Coefficient of Volume (Cv) 0.4, Nominal Valve Size 1/4 in, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Chemicals, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Body Material PFA, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Closed, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL, Connection Size - Side 1 1/4 in
