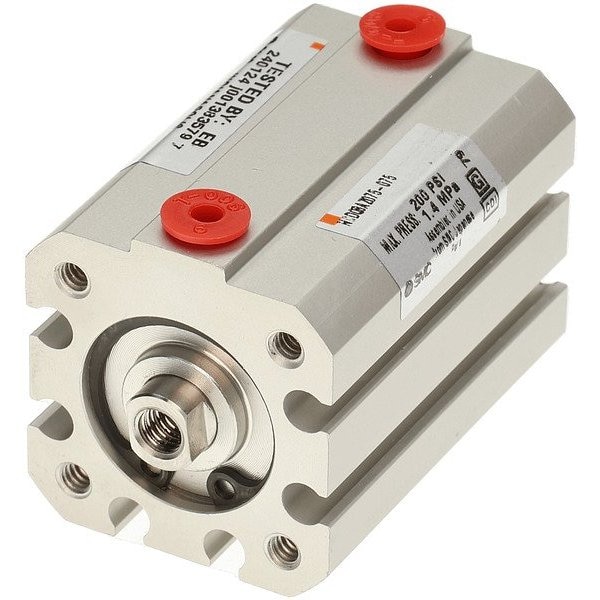

Compact Cylinder, NCQ8

Mfr # NCDQ8AZ075-300
Zoro # G314547946

58.69

/ea

Key Features

Cylinder Action

Double Acting

Body Material

Aluminum

Cylinder Type

Compact

Magnetic Piston

Magnetic Piston

Piston Material

Aluminum

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: NCDQ8AZ075-300
Zoro #: G314547946
UPC #: -
Country of Origin: United States

Dimensions

Rod Thread Size: #10-32 UNF
Rod Diameter: 5/16 in
Overall Height: 1 1/8 in
Inlet Size: #10-32
Body Diameter: 1 1/8 in
Stroke Length: 3 in
Bore Diameter: 3/4 in

Details

Cylinder Action: Double Acting
Item: Compact Cylinder
Body Material: Aluminum
Cylinder Type: Compact
Magnetic Piston: Magnetic Piston
Piston Material: Aluminum
Cushion Type: None
Piston Rod Material: Stainless Steel
Standards: RoHS Compliant
Weight: 0.5 lb
Rod Gender: Female
Piston Material Finish: Chromate Coated
Rod Rotation: Rotating Rod
Air Inlet Type: UNF
Inlet Gender: Female
For Fluid Type: Air
Series: NCQ8
Air Inlet Center to Center Distance: 1 1/16 in
Body Material Finish: Anodized
Minimum Operating Pressure: 8 psi
Mounting Orientation: Horizontal, Vertical
Maximum Operating Pressure: 200 psi
Maximum Operating Temperature: 150 Degrees F
System of Measurement: Inch
Number of Rods: Single Rod
Lead Wire Type: No Lead Wire
Cylinder Repair: Non-Repairable
Minimum Operating Temperature: 15 Degrees F
Actuation Type: Air Extend, Air Retract
Piston Rod Material Grade: 304

Description

Compact Cylinder, Body Material Aluminum, Cylinder Type Compact, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Tapped Hole, Bore Diameter 3/4 in, Cushion Type None, Stroke Length 3 in, Inlet Size #10-32, Air Inlet Type UNF, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Mounting Location Center, Tie Rod Material Not Applicable
