Shop SMC

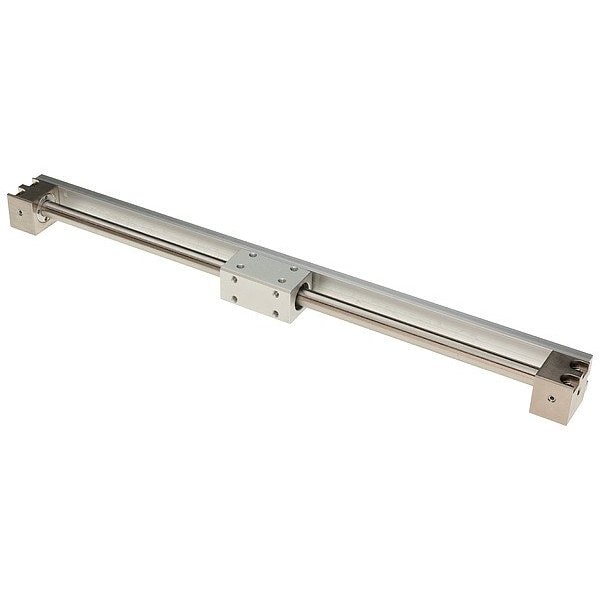

CY3, Magnet Coupled Rodless Cylinder

  • Mfr # CY3R6-200

  • Zoro # G713344566


product price:  $209.99
/ea
Free Shipping & Returns

Key Features

Cylinder Action
Double Acting
Body Material
Aluminum
Cylinder Type
Rodless
Magnetic Piston
Magnetic Piston
Standards
RoHS Compliant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CY3R6-200
Zoro #
G713344566
UPC #
-
Country of Origin
China

Dimensions

Overall Length
266 mm
Inlet Size
3 mm
Stroke Length
200 mm
Overall Height
26 mm
Overall Width
19 mm
Bore Diameter
6 mm
Wire Rope Length
266 mm

Details

Cylinder Action
Double Acting
Item
Rodless Air Cylinder
Body Material
Aluminum
Cylinder Type
Rodless
Magnetic Piston
Magnetic Piston
Standards
RoHS Compliant
Piston Material
Brass
Cushion Type
Rubber Bumper
Air Inlet Type
Metric
Mounting Orientation
Horizontal, Multiposition, Vertical
Minimum Operating Pressure
0.12 MPa
Series
CY3R
Maximum Operating Pressure
0.16 MPa
Maximum Operating Temperature
140 Degrees F
System of Measurement
Metric
Weight
0.08 kg
Minimum Operating Temperature
14 Degrees F
Mounting Style
Direct
For Fluid Type
Air
Body Material Finish
Anodized

Description

Rodless Air Cylinder, Mounting Style Direct, Bore Diameter 6 mm, Stroke Length 200 mm, Inlet Size 3 mm, Air Inlet Type Metric, Body Material Aluminum, Magnetic Piston Magnetic Piston, Cushion Type Rubber Bumper, Cylinder Type Rodless, Cylinder Action Double Acting, For Fluid Type Air, System of Measurement Metric, Body Material Finish Anodized, Series CY3R, Standards RoHS Compliant, Maximum Operating Pressure 0.16 MPa, Maximum Operating Temperature 140 Degrees F

Restrictions

Hazardous material
