Gast

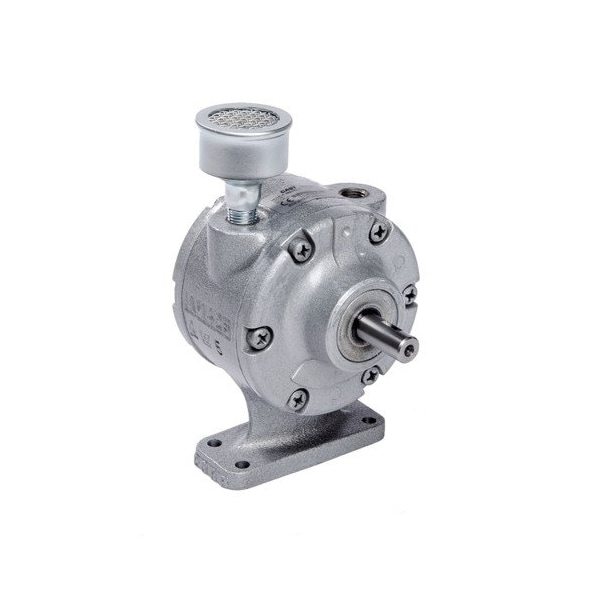

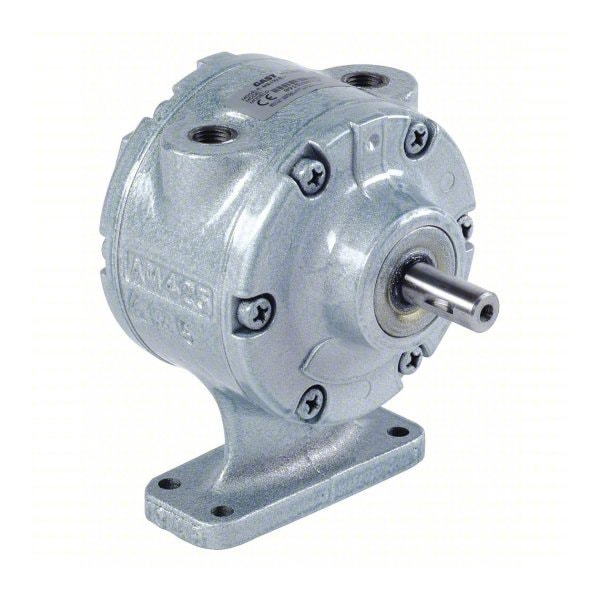

Stock 40/Skid 4Am-Frv-13C Air Motor

product price: $368.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design AIR
  • Rotation CW/CCW
  • Overall Length 5 3/4 in
  • Standards ATEX
  • Mount Type Foot
See all product information

Product Information

  • Brand Gast
  • MFR # 4AM-FRV-13C
  • Zoro # G0602625
  • Country of Origin United States
  • Category Air Motors

Dimensions

Overall Length 5 3/4 in
Shaft Length 1 1/8 in
Length Less Shaft 4 7/10 in
Overall Width 3 3/4 in
Outside Diameter 3 3/4 in
Overall Height 5 1/4 in
Keyway Length 1/2 in
Manufacturers Warranty Length 1 yr
Inlet Size 1/4 in
Shaft Diameter 1/2 in
Keyway Width 1/8 in

Details

Item Air Motor
Motor Design AIR
Rotation CW/CCW
Standards ATEX
Mount Type Foot
Includes Muffler
Weight 7.5 lb
System of Measurement Inch
Nameplate Speed 3,000 RPM
Output Power @ 25% Maximum Speed 0.65 hp
Air Inlet Center to Center Distance 2 1/2 in
Mounting Orientation Any Angle
Minimum Flow Rate 5 cfm
Shaft Material Grade 197-223 BHN
Keyway Type Woodruff
Series 4AM
Maximum Ambient Temperature 248 Degrees F
Shaft Material Steel
Minimum Ambient Temperature 34 Degrees F
Housing Material Finish Painted
Minimum Operating Pressure 20 psi
Air Inlet Type NPT
No Load Speed 3,000 RPM
Output Power @ Maximum Speed 1.7 hp
Housing Material Grade G2500
Starting Torque 32 in-lb
Output Power @ 50% Maximum Speed 1.1 hp
Air Consumption 72 cfm
Maximum Flow Rate 72 cfm
Motor Frame Material Cast Iron
Maximum Operating Pressure 100 psi
Housing Material Cast Iron
Maximum Torque 35 in-lb
Inlet Gender Female
Shaft Orientation Inline
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 35 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 72 cfm, Shaft Diameter 1/2 in, Shaft Length 1 1/8 in, Mount Type Foot, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 7.5 lb, Housing Material Grade G2500, Housing Material Finish Painted
