Shop SMC

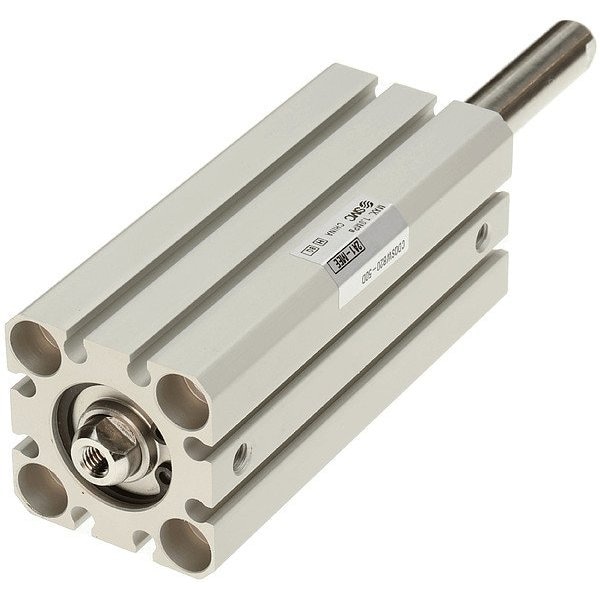

CYL, COMPACT, DBL ROD

  • Mfr # CDQSWB12-20DM

  • Zoro # G514547937

product price:
$
51.19
/ea

Key Features

Cylinder Action
Double Acting
Body Material
Aluminum
Cylinder Type
Compact
Magnetic Piston
Magnetic Piston
Piston Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CDQSWB12-20DM
Zoro #
G514547937
UPC #
-
Country of Origin
Japan
Cylinder Action
Double Acting
Item
Compact Cylinder
Body Material
Aluminum
Cylinder Type
Compact
Magnetic Piston
Magnetic Piston
Piston Material
Aluminum
Standards
RoHS Compliant
Cushion Type
None
Piston Rod Material
Stainless Steel
Inlet Gender
Female
For Fluid Type
Air
Minimum Operating Temperature
14 Degrees F
Rod Gender
Male
Cylinder Repair
Non-Repairable
Minimum Operating Pressure
10.15 MPa
Maximum Operating Pressure
145 MPa
Air Inlet Type
Metric Standard
Maximum Operating Temperature
158 Degrees F
Number of Rods
Double Rod
Body Material Finish
Anodized
System of Measurement
Metric
Air Inlet Center to Center Distance
27 mm
Series
CQS
Actuation Type
Air Extend, Air Retract
Lead Wire Type
No Lead Wire
Rod Rotation
Rotating Rod
Weight
0.07 kg
Mounting Orientation
Horizontal, Vertical
Piston Rod Material Grade
304

Description

Compact Cylinder, Body Material Aluminum, Cylinder Type Compact, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Tapped Hole, Through Hole, Bore Diameter 12 mm, Cushion Type None, Stroke Length 20 mm, Inlet Size M5 x 0.8, Air Inlet Type Metric Standard, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Double Rod, System of Measurement Metric, Body Material Finish Anodized, Mounting Location Front
