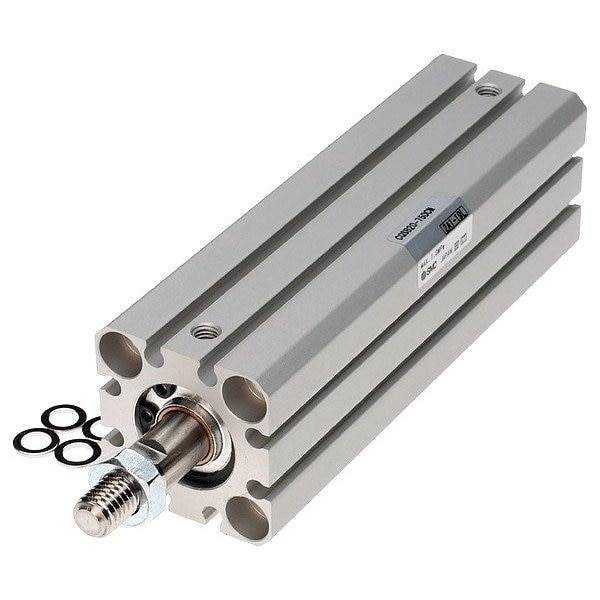

CYLINDER, COMPACT
Mfr # CQSB20-75DCM
Zoro # G313344614
product price:Â
$
59.59
/ea
Key Features
Cylinder Action
Double Acting
Body Material
Aluminum
Rod Thread Length
18.5 mm
Cylinder Type
Compact
Magnetic Piston
Non-Magnetic Piston
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CQSB20-75DCM
- Zoro #
- G313344614
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Rod Thread Length
- 18.5 mm
- Rod Thread Size
- M8 x 1.25
- Inlet Size
- M5 x 0.8
- Rod Diameter
- 10 mm
- Bore Diameter
- 20 mm
- Stroke Length
- 75 mm
- Overall Height
- 36 mm
- Overall Width
- 36 mm
Description
Compact Cylinder, Body Material Aluminum, Cylinder Type Compact, Cylinder Repair Non-Repairable, Magnetic Piston Non-Magnetic Piston, Mounting Type Through Hole, Bore Diameter 20 mm, Cushion Type Rubber Cushion, Stroke Length 75 mm, Inlet Size M5 x 0.8, Air Inlet Type Metric Standard, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Mounting Location Front
