Shop SMC

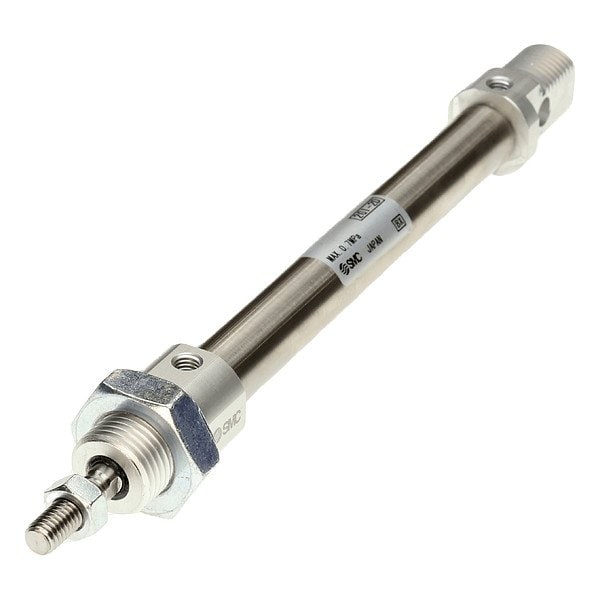

Cylinder, ISO, Dbl Acting

  • Mfr # CD85N12-25-B

  • Zoro # G614534851

product price:
$
35.39
/ea

Key Features

Cylinder Action
Double Acting
Body Material
Stainless Steel
Cylinder Type
Round Body
Magnetic Piston
Magnetic Piston
Standards
CETOP RP52P, ISO 6432, RoHS Compliant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CD85N12-25-B
Zoro #
G614534851
UPC #
-
Country of Origin
China
Cylinder Action
Double Acting
Item
Round Body Cylinder
Body Material
Stainless Steel
Cylinder Type
Round Body
Magnetic Piston
Magnetic Piston
Standards
CETOP RP52P, ISO 6432, RoHS Compliant
End Cap Material
Aluminum
Piston Material
Brass
Cushion Type
Rubber Cushion
Piston Rod Material
Stainless Steel
For Fluid Type
Air
Minimum Operating Temperature
-4 Degrees F
Number of Rods
Single Rod
Body Material Finish
Anodized
Rod Rotation
Rotating Rod
Maximum Operating Pressure
145 MPa
Body Material Grade
316
Series
C85
Actuation Type
Air Extend, Air Retract
Weight
0.08 kg
Air Inlet Type
Metric Standard
Minimum Operating Pressure
11.6 MPa
Lead Wire Type
No Lead Wire
Maximum Operating Temperature
176 Degrees F
Cylinder Repair
Non-Repairable
Air Inlet Center to Center Distance
59 mm
Mounting Orientation
Horizontal, Vertical
Inlet Gender
Female
Rod Gender
Male
System of Measurement
Metric
Piston Rod Material Grade
304

Description

Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Nose, Pivot, Bore Diameter 12 mm, Cushion Type Rubber Cushion, Stroke Length 25 mm, Inlet Size M5 x 0.8, Air Inlet Type Metric Standard, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Mounting Location Front
