Shop SMC

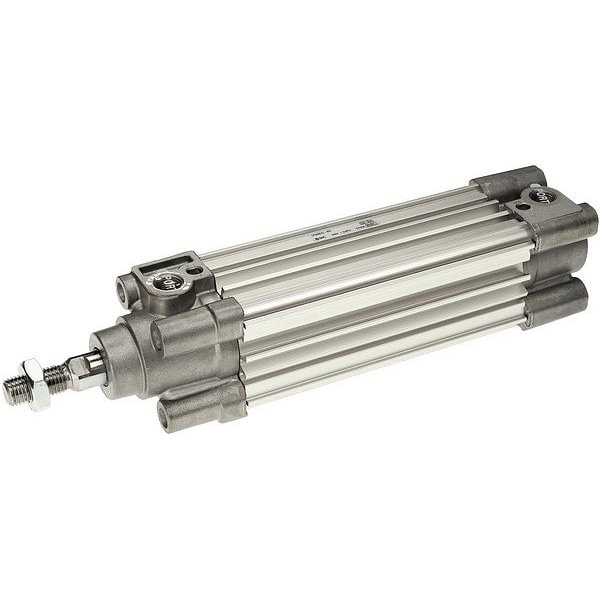

CYLINDER, TIE ROD

  • Mfr # CP96SDB32-100C
  • Zoro # G313344188
product price:
$
112.99
/ea
Free Shipping & Returns

Key Features

Cylinder Action
Double Acting
Body Material
Aluminum
Rod Thread Length
22 mm
Cylinder Type
Tie Rod
Magnetic Piston
Magnetic Piston
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CP96SDB32-100C
Zoro #
G313344188
UPC #
-
Country of Origin
China
Item
Tie Rod Cylinder
Cylinder Action
Double Acting
Body Material
Aluminum
Cylinder Type
Tie Rod
Magnetic Piston
Magnetic Piston
Piston Material
Aluminum
Tie Rod Material
Carbon Steel
Piston Rod Material
Carbon Steel
Standards
RoHS Compliant
Cushion Type
Air Cushion, Bumpers
Actuation Type
Air Extend, Air Retract
Rod Gender
Male
Number of Rods
Single Rod
Inlet Gender
Female
Series
CP96
System of Measurement
Metric
Weight
0.46 kg
Mounting Orientation
Horizontal, Vertical
Maximum Operating Pressure
145 MPa
Cylinder Repair
Non-Repairable
Minimum Operating Pressure
7.25 MPa
Maximum Operating Temperature
158 Degrees F
Rod Rotation
Rotating Rod
For Fluid Type
Air
Lead Wire Type
No Lead Wire
Minimum Operating Temperature
-4 Degrees F
Air Inlet Type
G
Air Inlet Center to Center Distance
168 mm

Description

Tie Rod Cylinder, Body Material Aluminum, Cylinder Type Tie Rod, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Tapped Hole, Bore Diameter 32 mm, Cushion Type Air Cushion, Bumpers, Stroke Length 100 mm, Inlet Size 1/8 in, Air Inlet Type G, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Mounting Location Front, Tie Rod Material Carbon Steel, Body Material Grade Not Applicable
