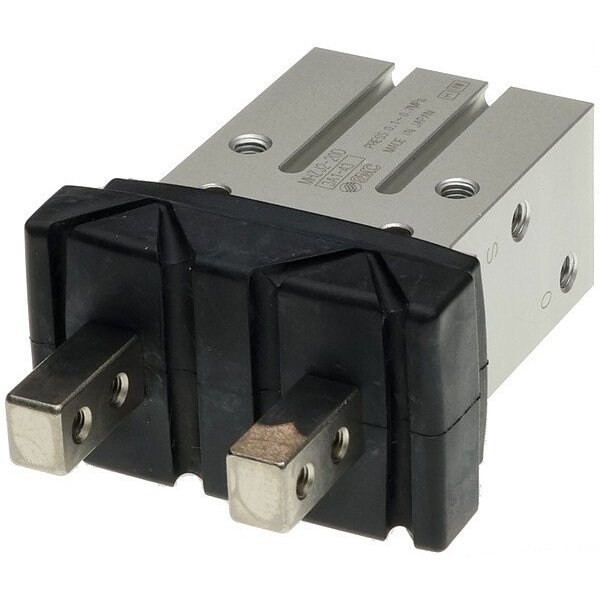

Gripper, MHZ, Parallel Style Air Gripper
Mfr # MHZJ2-16D
Zoro # G214534244
product price:Â $277.99
/ea
Free Shipping & Returns
Key Features
Open Width
20.9 mm
Minimum Operating Pressure
15 psi
Finger Material
Stainless Steel
Maximum Operating Temperature
140 Degrees F
Overall Height
29.6 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MHZJ2-16D
- Zoro #
- G214534244
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Open Width
- 20.9 mm
- Overall Height
- 29.6 mm
- Overall Length
- 67.3 mm
- Stroke Length
- 6 mm
- Overall Width
- 45 mm
- Bore Diameter
- 16 mm
- Wire Rope Length
- 67.3 mm
Details
- Item
- Parallel Gripper
- Minimum Operating Pressure
- 15 psi
- Finger Material
- Stainless Steel
- Maximum Operating Temperature
- 140 Degrees F
- Repeatability
- +/-0.01 mm
- System of Measurement
- Metric
- Weight
- 0.31 lb
- Minimum Operating Temperature
- 14 Degrees F
- Body Material
- Aluminum
- Series
- MHZJ2
- Maximum Operating Pressure
- 101 psi
- Body Material Finish
- Hard Anodized
- Seal Material
- Nitrile
Description
Parallel Gripper, Series MHZJ2, Open Width 20.9 mm, Stroke Length 6 mm, Maximum Operating Pressure 101 psi, Minimum Operating Pressure 15 psi, Overall Length 67.3 mm, Overall Width 45 mm, Overall Height 29.6 mm, Body Material Aluminum, Finger Material Stainless Steel, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Weight 0.31 lb, Body Material Finish Hard Anodized, System of Measurement Metric, Seal Material Nitrile, Repeatability +/-0.01 mm
