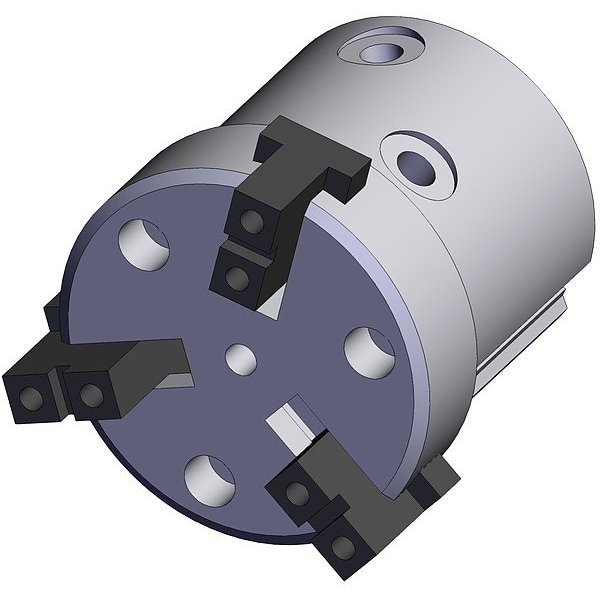

MHS, Parallel Style Air Gripper
Mfr # MHSH3-25D
Zoro # G014534253
product price:Â
$
538.99
/ea
Free Shipping & Returns
Key Features
Open Width
12.5 mm
Series
MHSH3
Body Material
Aluminum
Minimum Operating Pressure
29 psi
Standards
RoHS Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MHSH3-25D
- Zoro #
- G014534253
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Open Width
- 12.5 mm
- Overall Height
- 55 mm
- Overall Width
- 47 mm
- Stroke Length
- 3 mm
- Overall Length
- 47 mm
- Bore Diameter
- 25 mm
- Wire Rope Length
- 47 mm
- Length
- 47 mm
Details
- Item
- Parallel Gripper
- Series
- MHSH3
- Body Material
- Aluminum
- Minimum Operating Pressure
- 29 psi
- Standards
- RoHS Compliant
- Maximum Operating Pressure
- 87 psi
- Repeatability
- +/-0.01 mm
- System of Measurement
- Metric
- Finger Material
- Carbon Steel
- Minimum Operating Temperature
- 14 Degrees F
- Weight
- 220 g
- Maximum Operating Temperature
- 140 Degrees F
- Body Material Finish
- Hard Anodized
- Seal Material
- Nitrile
Description
Parallel Gripper, Series MHSH3, Open Width 12.5 mm, Stroke Length 3 mm, Maximum Operating Pressure 87 psi, Minimum Operating Pressure 29 psi, Overall Length 47 mm, Overall Width 47 mm, Overall Height 55 mm, Body Material Aluminum, Finger Material Carbon Steel, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 220 g, Body Material Finish Hard Anodized, System of Measurement Metric, Seal Material Nitrile
