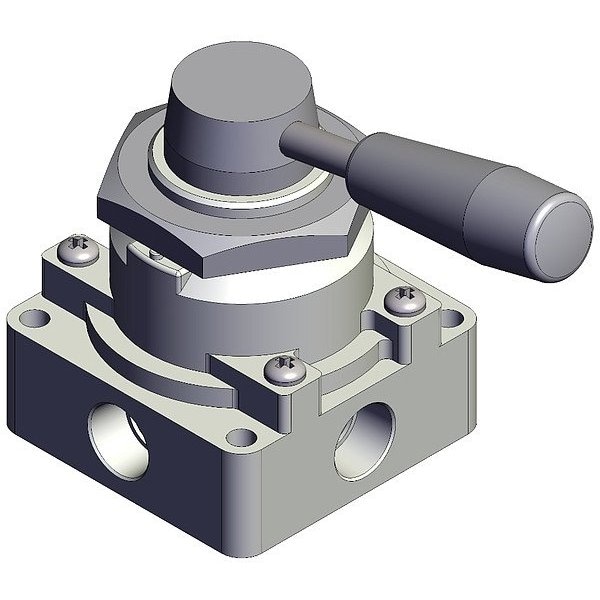

Hand Valve, Closed, VH, Three-Position
- Mfr # VH310-N03
- Zoro # G415191789
product price:Â
$
72.49
/ea
Key Features
Center Position
Closed
Series
VH
Number of Positions
Three-Position
Overall Height
105 mm
Overall Length
134 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- VH310-N03
- Zoro #
- G415191789
- UPC #
- -
- Country of Origin
- Japan
- Item
- Hand Valve
- Center Position
- Closed
- Series
- VH
- Number of Positions
- Three-Position
- Body Material
- Aluminum
- Seal Material
- Buna-N
- Standards
- RoHS Compliant
- Coefficient of Volume (Cv)
- 1.5
- Operating Temperature - Minimum
- -5 Degrees C
- Valve Type
- Rotary
- Operating Temperature - Maximum
- 60 Degrees C
- For Media
- Air
- Operating Pressure - Maximum
- 1 MPa
- Lubrication
- Lubrication Not Required
- Valve Port Connection Type
- NPT
- Actuator Type
- Lever
- Body Style
- Panel-Mounted, Side-Ported
Dimensions
- Overall Height
- 105 mm
- Overall Length
- 134 mm
- Overall Width
- 74 mm
- Valve Port Connection Size
- 3/8 in
- Base Size
- 3/8 in
- Wire Rope Length
- 134 mm
- Length
- 134 mm
Description
Hand Valve, Center Position Closed, Body Material Aluminum, Overall Length 134 mm, Overall Height 105 mm, Overall Width 74 mm, Series VH
