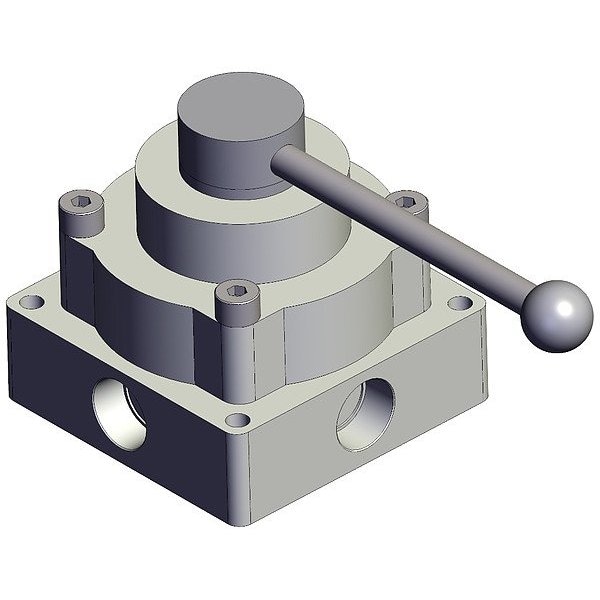

Hand Valve, Closed, VH, Three-Position
- Mfr # VH600-N10
- Zoro # G515191740
product price:Â
$
255.99
/ea
Free Shipping & Returns
Key Features
Center Position
Closed
Series
VH
Number of Positions
Three-Position
Overall Height
151 mm
Overall Length
300 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VH600-N10
- Zoro #
- G515191740
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 151 mm
- Overall Length
- 300 mm
- Overall Width
- 152 mm
- Valve Port Connection Size
- 1 in
- Base Size
- 1 in
- Wire Rope Length
- 300 mm
- Length
- 300 mm
Details
- Item
- Hand Valve
- Center Position
- Closed
- Series
- VH
- Number of Positions
- Three-Position
- Seal Material
- Buna-N
- Body Material
- Cast Iron
- For Media
- Air
- Body Style
- Side-Ported
- Valve Port Connection Type
- NPT
- Lubrication
- Lubrication Not Required
- Operating Pressure - Maximum
- 0.7 MPa
- Operating Temperature - Minimum
- -5 Degrees C
- Operating Temperature - Maximum
- 60 Degrees C
- Coefficient of Volume (Cv)
- 38.8
- Valve Type
- Rotary
- Standards
- RoHS Compliant
- Actuator Type
- Lever
Description
Hand Valve, Center Position Closed, Body Material Cast Iron, Overall Length 300 mm, Overall Height 151 mm, Overall Width 152 mm, Series VH
