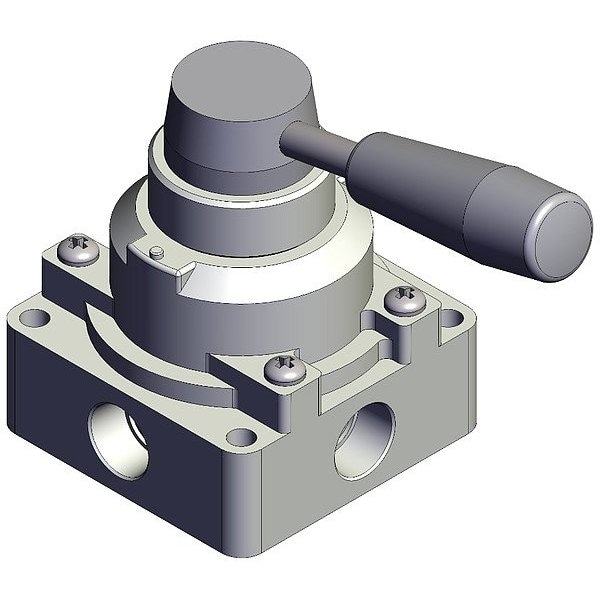

Hand Valve, Exhaust, VH, Three-Position
Mfr # VH301-03
Zoro # G515191764
product price: $67.19
/eaKey Features
Center Position
Exhaust
Series
VH
Number of Positions
Three-Position
Overall Height
105 mm
Overall Length
134 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
VH301-03
Zoro #
G515191764
UPC #
-
Country of Origin
Japan
Dimensions
Overall Height
105 mm
Overall Length
134 mm
Overall Width
74 mm
Valve Port Connection Size
3/8 in
Base Size
3/8 in
Details
Item
Hand Valve
Center Position
Exhaust
Series
VH
Number of Positions
Three-Position
Body Material
Aluminum
Seal Material
Buna-N
Operating Temperature - Minimum
-5 Degrees C
Standards
RoHS Compliant
Operating Pressure - Maximum
1 MPa
Body Style
Side-Ported
For Media
Air
Coefficient of Volume (Cv)
1.5
Operating Temperature - Maximum
60 Degrees C
Valve Type
Rotary
Lubrication
Lubrication Not Required
Valve Port Connection Type
BSPT
Actuator Type
Lever
Description
Hand Valve, Center Position Exhaust, Body Material Aluminum, Overall Length 134 mm, Overall Height 105 mm, Overall Width 74 mm, Series VH
